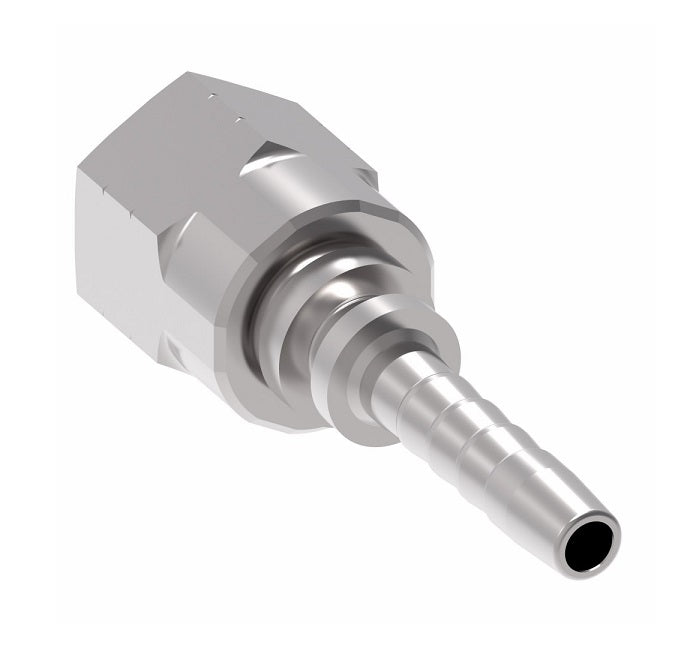

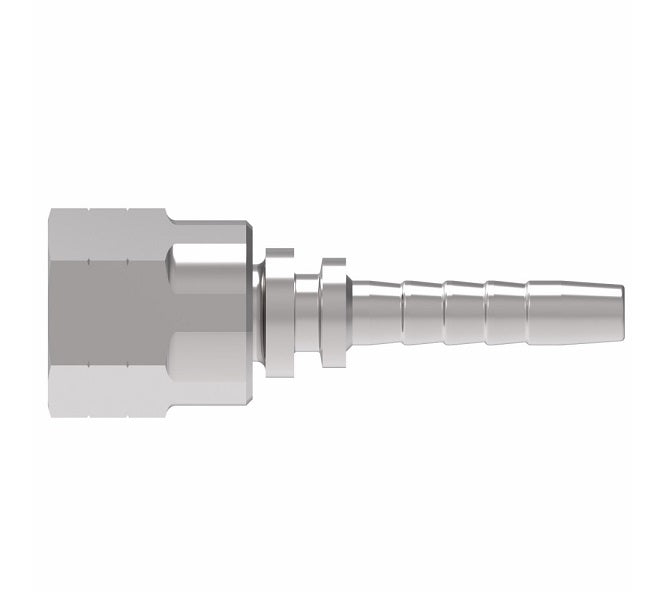

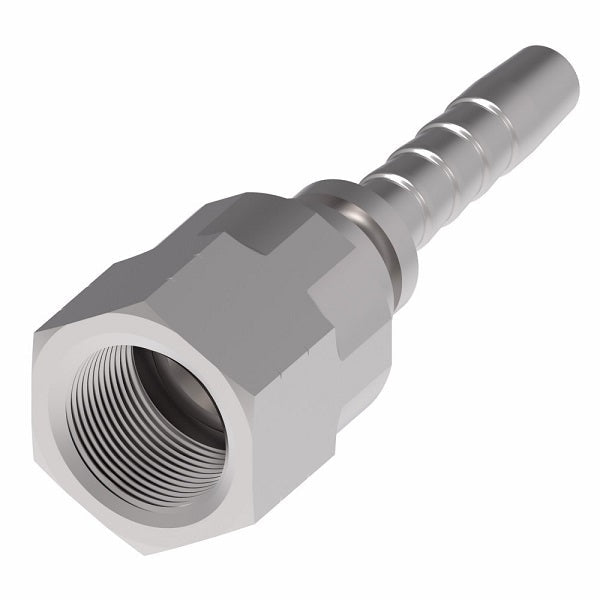

26711-16-16ZF Winner by Danfoss | Female JIC 37° Swivel 2-Piece Hose Crimp Fitting | -16 Female JIC 37° Swivel x -16 Hose Barb | Steel
26711-16-16ZF Winner by Danfoss | Female JIC 37° Swivel 2-Piece Hose Crimp Fitting | -16 Female JIC 37° Swivel x -16 Hose Barb | Steel
26711-16-16ZF Winner by Danfoss | Female JIC 37° Swivel 2-Piece Hose Crimp Fitting | -16 Female JIC 37° Swivel x -16 Hose Barb | Steel
26711-16-16ZF Winner by Danfoss | Female JIC 37° Swivel 2-Piece Hose Crimp Fitting | -16 Female JIC 37° Swivel x -16 Hose Barb | Steel

26711-16-16ZF Winner by Danfoss | Female JIC 37° Swivel 2-Piece Hose Crimp Fitting | -16 Female JIC 37° Swivel x -16 Hose Barb | Steel

$27.80 - $27.80
$27.80
$27.80 - $27.80
$27.80

Winner by Danfoss
Female JIC 37° Swivel 2-Piece Hose Crimp Fitting - Female JIC 37° Swivel x Hose Barb - Straight
Specifications for Variant SKU: 26711-16-16ZF Danfoss
Shape (Orientation): Straight
Ends Configuration: 1in Female JIC, 1in Hose Barb
Material(s): Steel
Compatible with the following Series: EC115 Series  |   EC215 Series  |   EC110 Series  |   EC210 Series  |   EC118 Series
Features:
  • Non-skive, two-piece crimp Fitting.
  • Zinc Trivalent Chromate (Cr3) (Clear silver hexavalent chromium-free) plating.
  • Carbon steel material.
Part Number Terminal End
Dash Size		 Thread DN Hose
Size		 A D
Cut Off Factor		 E&Oslash Hex 1
26711-04-04ZF -04 7/16"-20 6 -04 1.69" 0.59" 0.16" 14mm
26711-06-04ZF -06 9/16"-18 6 -04 1.71" 0.61" 0.16" 19mm
26711-06-06ZF -06 9/16"-18 10 -06 1.79" 0.61" 0.28" 19mm
26711-08-06ZF -08 3/4"-16 10 -06 1.87" 0.69" 0.28" 22mm
26711-08-08ZF -08 3/4"-16 12 -08 1.97" 0.73" 0.39" 22mm
26711-10-08ZF -10 7/8"-14 12 -08 1.99" 0.75" 0.39" 27mm
26711-10-10ZF -10 7/8"-14 16 -10 2.11" 0.77" 0.47" 27mm
26711-12-12ZF -12 1-1/16"-12 20 -12 2.36" 0.85" 0.59" 32mm
26711-16-16ZF -16 1-5/16"-12 25 -16 2.76" 0.91" 0.83" 41mm
