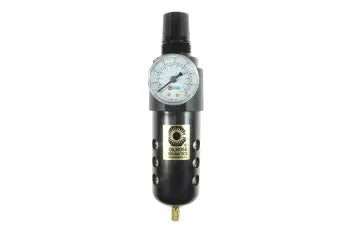

26FC2-DGS by Coilhose | 26 Series Integral Filter/Regulator | Gauge | Auto Drain | Metal Bowl with Sight Glass | 1/4" Pipe size

Save $20.04 Save $20.04
Original price $180.39
Original price $180.39 - Original price $180.39
Original price $180.39
Current price $160.35
$160.35 - $160.35
Current price $160.35
Coilhose Pneumatics - Filters, Regulators & Lubricators - 26 Series - Assemblies & Accessories - Integral Filter/Regulator
 More payment options
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

NaN
Specifications for Variant SKU: 26FC2-DGS Coilhose
Material(s): Aluminum
Overview:
  • 26 Series combination units are an efficient way to save space. They have the same features as the individual units and come pre-assembled for quick installation.
Features:
  • Combines filter and regulator in space saving design.
  • 40 or 5 micron filter element.
  • Bowl guard is standard.
  • Balanced poppet valve design assures superior performance.
  • 0-125 PSI, 0-60 PSI, 0-25 PSI pressure ranges available.
  • Panel mount, metal bowl and gauge options available.
Warning:
  • Although polycarbonate bowls are capable of withstanding extreme physical abuse, they are susceptible to damage and may possibly burst when subjected to some cleaning products and synthetic oils, particularly phosphate esters. Should there be any questions regarding their compatibility with your applications, consult the factory or use a metal bowl.

Model Pipe Size Drain Gauge Material Max Pressure Micron Level Pressure Range
26FC2 1/4" Manual No Polycarbonate 150 PSI 40 Micron Element 0-125 PSI
26FC2-GL 1/4" Manual Yes Polycarbonate 150 PSI 40 Micron Element 0-60 PSI
26FC2-GM 1/4" Manual Yes Metal 250 PSI 40 Micron Element 0-125 PSI
26FC2-GMX 1/4" Manual Yes Metal 250 PSI 5 Micron Element 0-125 PSI
26FC2-GS 1/4" Manual Yes Metal w/ Sight glass 250 PSI 40 Micron Element 0-125 PSI
26FC2-GX 1/4" Manual Yes Polycarbonate 150 PSI 5 Micron Element 0-125 PSI
26FC2-J 1/4" Manual No Polycarbonate 150 PSI 40 Micron Element 0-25 PSI
26FC2-M 1/4" Manual No Metal 250 PSI 40 Micron Element 0-125 PSI
26FC2-S 1/4" Manual No Metal w/ Sight glass 250 PSI 40 Micron Element 0-125 PSI
26FC2-SX 1/4" Manual No Metal w/ Sight glass 250 PSI 5 Micron Element 0-125 PSI
26FC2-GJ 1/4" Manual Yes Polycarbonate 150 PSI 40 Micron Element 0-25 PSI
26FC2-G 1/4" Manual Yes Polycarbonate 150 PSI 40 Micron Element 0-125 PSI
26FC2-DS 1/4" Automatic No Metal w/ Sight glass 250 PSI 40 Micron Element 0-125 PSI
26FC2-CS* 1/4" Manual No Polycarbonate 150 PSI 40 Micron Element 0-125 PSI
26FC2-D 1/4" Automatic No Polycarbonate 150 PSI 40 Micron Element 0-125 PSI
26FC2-DG 1/4" Automatic Yes Polycarbonate 150 PSI 40 Micron Element 0-125 PSI
26FC2-DGLM 1/4" Automatic Yes Metal 250 PSI 40 Micron Element 0-60 PSI
26FC2-DGM 1/4" Automatic Yes Metal 250 PSI 40 Micron Element 0-125 PSI
26FC2-DGS 1/4" Automatic Yes Metal w/ Sight glass 250 PSI 40 Micron Element 0-125 PSI
26FC2-DGX 1/4" Automatic Yes Polycarbonate 150 PSI 5 Micron Element 0-125 PSI
26FC2-DM 1/4" Automatic No Metal 250 PSI 40 Micron Element 0-125 PSI
26FC2-DMX 1/4" Automatic No Metal 250 PSI 5 Micron Element 0-125 PSI
26FC2-X 1/4" Manual No Polycarbonate 150 PSI 5 Micron Element 0-125 PSI

26FC3 3/8" Manual No Polycarbonate 150 PSI 40 Micron Element 0-125 PSI
26FC3-DX 3/8" Automatic No Metal 150 PSI 5 Micron Element 0-125 PSI
26FC3-G 3/8" Manual Yes Polycarbonate 150 PSI 40 Micron Element 0-125 PSI
26FC3-GLM 3/8" Manual Yes Metal 250 PSI 40 Micron Element 0-60 PSI
26FC3-GM 3/8" Manual Yes Metal 250 PSI 40 Micron Element 0-125 PSI
26FC3-GS 3/8" Manual Yes Metal w/ Sight glass 250 PSI 40 Micron Element 0-125 PSI
26FC3-J 3/8" Manual No Polycarbonate 150 PSI 40 Micron Element 0-25 PSI
26FC3-L 3/8" Manual No Polycarbonate 150 PSI 40 Micron Element 0-60 PSI
26FC3-LM 3/8" Manual No Metal 250 PSI 40 Micron Element 0-60 PSI
26FC3-M 3/8" Manual No Metal 250 PSI 40 Micron Element 0-125 PSI
26FC3-S 3/8" Manual No Metal w/ Sight glass 250 PSI 40 Micron Element 0-125 PSI
26FC3-DS 3/8" Automatic No Metal w/ Sight glass 250 PSI 40 Micron Element 0-125 PSI
26FC3-DMX 3/8" Automatic No Metal 250 PSI 5 Micron Element 0-125 PSI
26FC3-CS* 3/8" Manual No Polycarbonate 150 PSI 40 Micron Element 0-125 PSI
26FC3-D 3/8" Automatic No Polycarbonate 150 PSI 40 Micron Element 0-125 PSI
26FC3-DG 3/8" Automatic Yes Polycarbonate 150 PSI 40 Micron Element 0-125 PSI
26FC3-DGJ 3/8" Automatic Yes Polycarbonate 150 PSI 40 Micron Element 0-25 PSI
26FC3-DGM 3/8" Automatic Yes Metal 250 PSI 40 Micron Element 0-125 PSI
26FC3-DGS 3/8" Automatic Yes Metal w/ Sight glass 250 PSI 40 Micron Element 0-125 PSI
26FC3-DGSX 3/8" Automatic Yes Metal w/ Sight glass 250 PSI 5 Micron Element 0-125 PSI
26FC3-DGX 3/8" Automatic Yes Polycarbonate 150 PSI 5 Micron Element 0-125 PSI
26FC3-DLMX 3/8" Automatic No Metal 250 PSI 5 Micron Element 0-60 PSI
26FC3-DM 3/8" Automatic No Metal 250 PSI 40 Micron Element 0-125 PSI
26FC3-X 3/8" Manual No Polycarbonate 150 PSI 5 Micron Element 0-125 PSI
* Clamshell Packaging
Coilhose Pneumatics

Coilhose Pneumatics

Coilhose Pneumatics proudly supplies distributors with an extensive assortment of superior pneumatic accessories. From couplers and fittings to blow guns and air hoses, we have it all. Browse our selection to find the best pneumatic accessories available.
