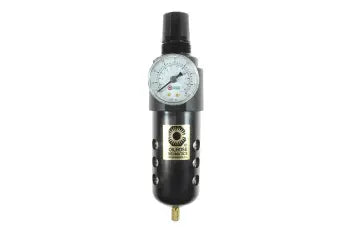

26FC3-DG by Coilhose | 26 Series Integral Filter/Regulator | Auto Drain | Gauge | 3/8" Pipe size

26FC3-DG by Coilhose | 26 Series Integral Filter/Regulator | Auto Drain | Gauge | 3/8" Pipe size

Save $95.76 Save $95.76
$239.40
$239.40 - $239.40
$239.40
$143.64
$143.64 - $143.64
$143.64
Coilhose Pneumatics - Filters, Regulators & Lubricators - 26 Series - Assemblies & Accessories - Integral Filter/Regulator
Specifications for Variant SKU: 26FC3-DG Coilhose
Material(s): Aluminum
Overview:
  • 26 Series combination units are an efficient way to save space. They have the same features as the individual units and come pre-assembled for quick installation.
Features:
  • Combines filter and regulator in space saving design.
  • 40 or 5 micron filter element.
  • Bowl guard is standard.
  • Balanced poppet valve design assures superior performance.
  • 0-125 PSI, 0-60 PSI, 0-25 PSI pressure ranges available.
  • Panel mount, metal bowl and gauge options available.
Warning:
  • Although polycarbonate bowls are capable of withstanding extreme physical abuse, they are susceptible to damage and may possibly burst when subjected to some cleaning products and synthetic oils, particularly phosphate esters. Should there be any questions regarding their compatibility with your applications, consult the factory or use a metal bowl.

Model Pipe Size Drain Gauge Material Max Pressure Micron Level Pressure Range
26FC2 1/4" Manual No Polycarbonate 150 PSI 40 Micron Element 0-125 PSI
26FC2-GL 1/4" Manual Yes Polycarbonate 150 PSI 40 Micron Element 0-60 PSI
26FC2-GM 1/4" Manual Yes Metal 250 PSI 40 Micron Element 0-125 PSI
26FC2-GMX 1/4" Manual Yes Metal 250 PSI 5 Micron Element 0-125 PSI
26FC2-GS 1/4" Manual Yes Metal w/ Sight glass 250 PSI 40 Micron Element 0-125 PSI
26FC2-GX 1/4" Manual Yes Polycarbonate 150 PSI 5 Micron Element 0-125 PSI
26FC2-J 1/4" Manual No Polycarbonate 150 PSI 40 Micron Element 0-25 PSI
26FC2-M 1/4" Manual No Metal 250 PSI 40 Micron Element 0-125 PSI
26FC2-S 1/4" Manual No Metal w/ Sight glass 250 PSI 40 Micron Element 0-125 PSI
26FC2-SX 1/4" Manual No Metal w/ Sight glass 250 PSI 5 Micron Element 0-125 PSI
26FC2-GJ 1/4" Manual Yes Polycarbonate 150 PSI 40 Micron Element 0-25 PSI
26FC2-G 1/4" Manual Yes Polycarbonate 150 PSI 40 Micron Element 0-125 PSI
26FC2-DS 1/4" Automatic No Metal w/ Sight glass 250 PSI 40 Micron Element 0-125 PSI
26FC2-CS* 1/4" Manual No Polycarbonate 150 PSI 40 Micron Element 0-125 PSI
26FC2-D 1/4" Automatic No Polycarbonate 150 PSI 40 Micron Element 0-125 PSI
26FC2-DG 1/4" Automatic Yes Polycarbonate 150 PSI 40 Micron Element 0-125 PSI
26FC2-DGLM 1/4" Automatic Yes Metal 250 PSI 40 Micron Element 0-60 PSI
26FC2-DGM 1/4" Automatic Yes Metal 250 PSI 40 Micron Element 0-125 PSI
26FC2-DGS 1/4" Automatic Yes Metal w/ Sight glass 250 PSI 40 Micron Element 0-125 PSI
26FC2-DGX 1/4" Automatic Yes Polycarbonate 150 PSI 5 Micron Element 0-125 PSI
26FC2-DM 1/4" Automatic No Metal 250 PSI 40 Micron Element 0-125 PSI
26FC2-DMX 1/4" Automatic No Metal 250 PSI 5 Micron Element 0-125 PSI
26FC2-X 1/4" Manual No Polycarbonate 150 PSI 5 Micron Element 0-125 PSI

26FC3 3/8" Manual No Polycarbonate 150 PSI 40 Micron Element 0-125 PSI
26FC3-DX 3/8" Automatic No Metal 150 PSI 5 Micron Element 0-125 PSI
26FC3-G 3/8" Manual Yes Polycarbonate 150 PSI 40 Micron Element 0-125 PSI
26FC3-GLM 3/8" Manual Yes Metal 250 PSI 40 Micron Element 0-60 PSI
26FC3-GM 3/8" Manual Yes Metal 250 PSI 40 Micron Element 0-125 PSI
26FC3-GS 3/8" Manual Yes Metal w/ Sight glass 250 PSI 40 Micron Element 0-125 PSI
26FC3-J 3/8" Manual No Polycarbonate 150 PSI 40 Micron Element 0-25 PSI
26FC3-L 3/8" Manual No Polycarbonate 150 PSI 40 Micron Element 0-60 PSI
26FC3-LM 3/8" Manual No Metal 250 PSI 40 Micron Element 0-60 PSI
26FC3-M 3/8" Manual No Metal 250 PSI 40 Micron Element 0-125 PSI
26FC3-S 3/8" Manual No Metal w/ Sight glass 250 PSI 40 Micron Element 0-125 PSI
26FC3-DS 3/8" Automatic No Metal w/ Sight glass 250 PSI 40 Micron Element 0-125 PSI
26FC3-DMX 3/8" Automatic No Metal 250 PSI 5 Micron Element 0-125 PSI
26FC3-CS* 3/8" Manual No Polycarbonate 150 PSI 40 Micron Element 0-125 PSI
26FC3-D 3/8" Automatic No Polycarbonate 150 PSI 40 Micron Element 0-125 PSI
26FC3-DG 3/8" Automatic Yes Polycarbonate 150 PSI 40 Micron Element 0-125 PSI
26FC3-DGJ 3/8" Automatic Yes Polycarbonate 150 PSI 40 Micron Element 0-25 PSI
26FC3-DGM 3/8" Automatic Yes Metal 250 PSI 40 Micron Element 0-125 PSI
26FC3-DGS 3/8" Automatic Yes Metal w/ Sight glass 250 PSI 40 Micron Element 0-125 PSI
26FC3-DGSX 3/8" Automatic Yes Metal w/ Sight glass 250 PSI 5 Micron Element 0-125 PSI
26FC3-DGX 3/8" Automatic Yes Polycarbonate 150 PSI 5 Micron Element 0-125 PSI
26FC3-DLMX 3/8" Automatic No Metal 250 PSI 5 Micron Element 0-60 PSI
26FC3-DM 3/8" Automatic No Metal 250 PSI 40 Micron Element 0-125 PSI
26FC3-X 3/8" Manual No Polycarbonate 150 PSI 5 Micron Element 0-125 PSI
* Clamshell Packaging
