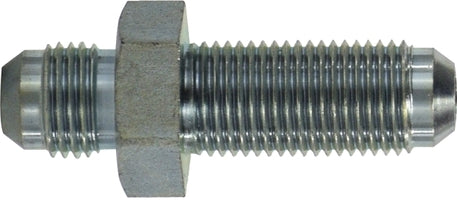

270014 (2700-14) Midland Hydraulic JIC Bulkhead Union - 1-3/16-12 Male JIC 37° Flare x 1-3/16-12 Male JIC 37° Flare - Steel

270014 by Midland | Hydraulic JIC Bulkhead Union | 1-3/16-12 Male JIC 37° Flare x 1-3/16-12 Male JIC 37° Flare | Steel

Save $7.77 Save $7.77
$49.98
$49.98 - $49.98
$49.98
$42.21
$42.21 - $42.21
$42.21

Midland Industries
Hydraulic Adapters: JIC Bulkhead Union - Steel

Lock Nuts are no longer included on Midland Industries fittings. They must be purchased separately.
Specifications for Variant SKU: 270014 Midland
Shape (Orientation): Straight
Material(s): Steel
Applicable Specs & Approvals: Applicable SAE Standards, Applicable Military Specifications
Specifications:
  • SAE 070601
  • MS 51520
Technical Info:
Crossover Series:
2700 2041R WTX 1260 C5325
Part Number Male JIC 37° Flare
(1)		 Male JIC 37° Flare
(2)		 Male JIC 37° Flare
Thread		 Lock Nut Part Number
(Not Included - Must be Purchased Separately)
270033 3/16" 3/16" 3/8-24 -
270044
(2700-4-4) 		1/4" 1/4" 7/16-20 03064
(0306-4)
270055
(2700-5-5) 		5/16" 5/16" 1/2-20 03065
(0306-5)
270066
(2700-6-6) 		3/8" 3/8" 9/16-18 03066
(0306-6)
27008
(2700-8) 		1/2" 1/2" 3/4-16 03068
(0306-8)
270010
(2700-10) 		5/8" 5/8" 7/8-14 030610
(0306-10)
270012
(2700-12) 		3/4" 3/4" 1-1/16-12 030612
(0306-12)
270014
(2700-14) 		7/8" 7/8" 1-3/16-12 030614
(0306-14)
270016
(2700-16) 		1" 1" 1-5/16-12 030616
(0306-16)
2700-LN-20-20 1-1/4" 1-1/4" 1-5/8-12 030620
(0306-20)
270024 1-1/2" 1-1/2" 1-7/8-12 -
270032 2" 2" 2-1/2-12 -
Midland Industries

Midland Industries

Midland Industries is a family of brands recognizable industry wide. Midland is a supplier of brass fittings, valves, and accessories for hose, pipe and tube in brass, bronze, stainless steel, steel, malleable iron, and plastics.
