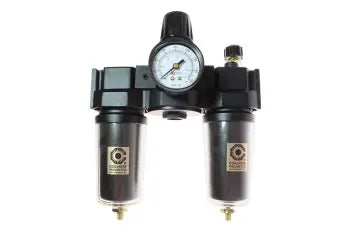

27FRL6-GSX by Coilhose | 27 Modular Series Filter + Regulator + Lubricator | Gauge | Metal Bowl with Sight Glass | 5 Micron Element- 3/4" Pipe size

27FRL6-GSX by Coilhose | 27 Modular Series Filter + Regulator + Lubricator | Gauge | Metal Bowl with Sight Glass | 5 Micron Element- 3/4" Pipe size

Save $228.29 Save $228.29
$570.73
$570.73 - $570.73
$570.73
$342.44
$342.44 - $342.44
$342.44
Coilhose Pneumatics - Filters, Regulators & Lubricators - 27 Modular Series - Filter + Regulator + Lubricator Trio
Specifications for Variant SKU: 27FRL6-GSX Coilhose
Material(s): Aluminum
Overview:
  • 27 Series combination units offer pre-assembled units for fast installations. The integral filter/regulator offers a space saving design. Duo and trio assemblies utilize the modular clamping system to ease installation.
Features:
  • Traditional trio design.
  • Gauge packaged uninstalled for installation on either side.
  • Bowl guard supplied standard.
  • Filter, regulator and lubricator options available.
Warning:
  • Although polycarbonate bowls are capable of withstanding extreme physical abuse, they are susceptible to damage and may possibly burst when subjected to some cleaning products and synthetic oils, particularly phosphate esters. Should there be any questions regarding their compatibility with your applications, consult the factory or use a metal bowl.

Model Pipe Size Drain Gauge Material Max Pressure Micron Level Pressure Range
27FRL3-G 3/8" Manual Yes Polycarbonate 150 PSI 40 Micron Element 0-125 PSI
27FRL3-GM 3/8" Manual Yes Metal Bowl 250 PSI 40 Micron Element 0-125 PSI
27FRL3-GS 3/8" Manual Yes Metal w/ Sight glass 250 PSI 40 Micron Element 0-125 PSI

27FRL4-G 1/2" Manual Yes Polycarbonate 150 PSI 40 Micron Element 0-125 PSI
27FRL4-GHM 1/2" Manual Yes Metal Bowl 250 PSI 40 Micron Element 0-250 PSI
27FRL4-GM 1/2" Manual Yes Metal Bowl 250 PSI 40 Micron Element 0-125 PSI
27FRL4-GS 1/2" Manual Yes Metal w/ Sight glass 250 PSI 40 Micron Element 0-125 PSI

27FRL6-G 3/4" Manual Yes Polycarbonate 150 PSI 40 Micron Element 0-125 PSI
27FRL6-GHM 3/4" Manual Yes Metal Bowl 250 PSI 40 Micron Element 0-250 PSI
27FRL6-GM 3/4" Manual Yes Metal Bowl 250 PSI 40 Micron Element 0-125 PSI
27FRL6-GS 3/4" Manual Yes Metal w/ Sight glass 250 PSI 40 Micron Element 0-125 PSI
27FRL6-GHMX 3/4" Manual Yes Metal Bowl 250 PSI 5 Micron Element 0-250 PSI
27FRL6-GSX 3/4" Manual Yes Metal w/ Sight glass 250 PSI 5 Micron Element 0-125 PSI
