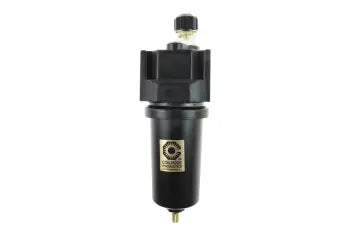

27L4-M by Coilhose | 27 Modular Series Lubricator | Metal Bowl | 1/2" Pipe Size | Die Cast Aluminum

27L4-M by Coilhose | 27 Modular Series Lubricator | Metal Bowl | 1/2" Pipe Size | Die Cast Aluminum

Save $10.07 Save $10.07
$90.59
$90.59 - $90.59
$90.59
$80.52
$80.52 - $80.52
$80.52
Coilhose Pneumatics - Filters, Regulators & Lubricators - 27 Modular Series - Lubricators
Specifications for Variant SKU: 27L4-M Coilhose
Material(s): Zinc, Aluminum
Overview:
  • 27 Modular Series Lubricators are engineered to provide exceptional installation flexibility. They are constructed of diecast aluminum and have a tamperproof adjustment cap. These units feature proportional air-to-oil delivery, ensuring even distribution of lubricant. The 27 Series Lubricator comes standard with a bowl guard.
Features:
  • Once oil delivery rate is set, proportional oil-to-air delivery rate assures even lubrication at all times.
  • Tamperproof cap allows oil delivery rate to be locked in place.
  • Unit refills through fill port without requiring depressurization.
  • Quick fill plug available for use with quick fill equipment.
Warning:
  • Although polycarbonate bowls are capable of withstanding extreme physical abuse, they are susceptible to damage and may possibly burst when subjected to some cleaning products and synthetic oils, particularly phosphate esters. Should there be any questions regarding their compatibility with your applications, consult the factory or use a metal bowl.
Maximum Supply Pressure: Plastic Bowl: 150 PSI
Metal Bowl: 250 PSI		 Materials: Plastic Bowl: Polycarbonate
Metal Bowl: Zinc Die Cast
Body: Die Cast Aluminum
Height: 8" Weight: 1 lb.
Maximum Diameter: 2-3/4" Bowl Capacity: 8.5 oz.

Supply Pressure Pressure Drop
1 2 3 4 5
3/8" at 25 PSI 10 SCFM 20 SCFM 23 SCFM 30 SCFM 38 SCFM
1/2" at 25 PSI 20 SCFM 35 SCFM 55 SCFM 65 SCFM 77 SCFM
3/8" at 100 PSI 19 SCFM 30 SCFM 40 SCFM 52 SCFM 62 SCFM
1/2" at 100 PSI 30 SCFM 60 SCFM 90 SCFM 122 SCFM 160 SCFM
Note: All values are approximate.

Model Pipe Size Material Max Pressure
27L3 3/8" Polycarbonate 150 PSI
27L3-M 3/8" Metal Bowl 250 PSI
27L3-S 3/8" Metal w/ Sight glass 250 PSI

27L4 1/2" Polycarbonate 150 PSI
27L4-M 1/2" Metal Bowl 250 PSI
27L4-S 1/2" Metal w/ Sight glass 250 PSI

27L6 3/4" Polycarbonate 150 PSI
27R6-M 3/4" Metal Bowl 250 PSI
27R6-S 3/4" Metal w/ Sight glass 250 PSI
