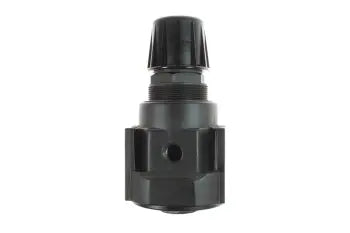

27R4-HP by Coilhose | 27 Modular Series Regulator | Panel Mount | 0-250 PSI Range | 1/2" Pipe Size | Die Cast Aluminum

27R4-HP by Coilhose | 27 Modular Series Regulator | Panel Mount | 0-250 PSI Range | 1/2" Pipe Size | Die Cast Aluminum

Save $9.48 Save $9.48
$85.28
$85.28 - $85.28
$85.28
$75.80
$75.80 - $75.80
$75.80
Coilhose Pneumatics - Filters, Regulators & Lubricators - 27 Modular Series - Regulators
Specifications for Variant SKU: 27R4-HP Coilhose
Material(s): Plastic, Aluminum
Overview:
  • The 27 Series Regulators are engineered for exceptional installation flexibility. These units have a 1/2" body for higher flow rates and are constructed of die-cast aluminum with a non-rising adjusting knob. These Regulators can be connected to other 27 Series units using modular clamps or pipe nipples and can be individually connected to an airline using a panel mount bracket.
Features:
  • 1/4" inch gauge ports can be used as secondary outlet ports.
  • Balanced poppet valve design assures superior performance.
  • 0-250 PSI, 0-125 PSI, 0-60 PSI, 0-25 PSI pressure ranges.
  • Self relieving feature prevents excessive pressure build-up.
  • Locking adjustment knob.
  • Panel mount and gauge options available.
Warning:
  • Although polycarbonate bowls are capable of withstanding extreme physical abuse, they are susceptible to damage and may possibly burst when subjected to some cleaning products and synthetic oils, particularly phosphate esters. Should there be any questions regarding their compatibility with your applications, consult the factory or use a metal bowl.
Maximum Supply Pressure: 250 PSI Maximum Operating Temp: 250° F
Materials: Adjusting Knob: High Impact Plastic
Body: Die Cast Aluminum		 Height: 5-1/2"
Maximum Diameter: 2-3/4" Bowl Capacity: 1-3/4 lbs
Regulator Pressure Ranges: 0-200 - Optional
0-125 - Standard
0-60 - Optional
0-25 - Optional

Supply 100 PSI Regulated Pressure Pressure Drop
5 10 20
3/8" at 25 PSI 20 SCFM 70 SCFM 80 SCFM
1/2" at 25 PSI 20 SCFM 80 SCFM 120 SCFM
3/8" at 50 PSI 20 SCFM 40 SCFM 100 SCFM
1/2" at 50 PSI 20 SCFM 40 SCFM 120 SCFM
3/8" at 75 PSI 10 SCFM 20 SCFM 100 SCFM
1/2" at 75 PSI 10 SCFM 20 SCFM 120 SCFM
Note: All values are approximate.

Model Pipe Size Gauge Panel Mount Max Pressure Pressure Range
27R3 3/8" No No 250 PSI 0-125 PSI
27R3-L 3/8" No No 250 PSI 0-60 PSI
27R3-J 3/8" No No 250 PSI 0-25 PSI
27R3-H 3/8" No No 250 PSI 0-250 PSI
27R3-GP 3/8" Yes Yes 250 PSI 0-125 PSI
27R3-GL 3/8" Yes No 250 PSI 0-60 PSI
27R3-GJ 3/8" Yes No 250 PSI 0-25 PSI
27R3-GHP 3/8" Yes Yes 250 PSI 0-250 PSI
27R3-GH 3/8" Yes No 250 PSI 0-250 PSI
27R3-G 3/8" Yes No 250 PSI 0-125 PSI
27R3-P 3/8" No Yes 250 PSI 0-125 PSI

27R4 1/2" No No 250 PSI 0-125 PSI
27R4-L 1/2" No No 250 PSI 0-60 PSI
27R4-J 1/2" No No 250 PSI 0-25 PSI
27R4-HP 1/2" No Yes 250 PSI 0-250 PSI
27R4-H 1/2" No No 250 PSI 0-250 PSI
27R4-GP 1/2" Yes Yes 250 PSI 0-125 PSI
27R4-GL 1/2" Yes No 250 PSI 0-60 PSI
27R4-GJP 1/2" Yes Yes 250 PSI 0-25 PSI
27R4-GJ 1/2" Yes No 250 PSI 0-25 PSI
27R4-GHP 1/2" Yes Yes 250 PSI 0-250 PSI
27R4-GH 1/2" Yes No 250 PSI 0-250 PSI
27R4-G 1/2" Yes No 250 PSI 0-125 PSI
27R4-P 1/2" No Yes 250 PSI 0-125 PSI

27R6 3/4" No No 250 PSI 0-125 PSI
27R6-HP 3/4" No Yes 250 PSI 0-250 PSI
27R6-H 3/4" No No 250 PSI 0-250 PSI
27R6-GP 3/4" Yes Yes 250 PSI 0-125 PSI
27R6-GL 3/4" Yes No 250 PSI 0-60 PSI
27R6-GJ 3/4" Yes No 250 PSI 0-25 PSI
27R6-GHP 3/4" Yes Yes 250 PSI 0-250 PSI
27R6-GH 3/4" Yes No 250 PSI 0-250 PSI
27R6-G 3/4" Yes No 250 PSI 0-125 PSI
27R6-L 3/4" No No 250 PSI 0-60 PSI
