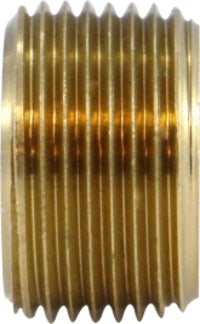

28116 (28-116) Midland Face Bushing Plug - 3/8" Male NPTF x 1/4" Female NPTF - Brass

28116 by Midland | Face Bushing Plug | 3/8" Male NPTF x 1/4" Female NPTF | Brass

Save $0.22 Save $0.22
$1.99
$1.99 - $1.99
$1.99
$1.77
$1.77 - $1.77
$1.77

Midland Industries
Brass Fitting - Pipe Thread - Face Bushing Plug

Inventory @ Manufacturers Warehouse: 1329 Units
Specifications for Variant SKU: 28116 Midland
Shape (Orientation): Straight
Ends Configuration: 3/8in Male NPTF, 1/4in Female NPTF
Material(s): Brass
Applicable Specs & Approvals: Applicable ASA Standards, Applicable ASME Standards, Applicable SAE Standards

SPECIFICATIONS

Applications: Grease, Fuels, LP and Natural Gas (available on special order), Refrigeration, Instrumentation and Hydraulic Systems Used With: Brass, Bronze, Copper, Steel, Aluminum and Iron Pipe
SAE Rating: N/A Conformance: Meets specifications and standards of ASA, ASME and SAE
Vibration: Fair Resistance. Temperature Range: -65°F to +250°F (-53°C to +121°C)
Tolerance: +/- .02 on all dimensions. Dimension Data can change without notice. Lead Free: Not Lead Free
Pipe Size 1/16" 1/8" 1/4" 3/8" 1/2" 3/4" 1"
Thread Size 1/16-27 1/8-27 1/4-18 3/8-18 1/2-14 3/4-14 1-11-1/2
Working Pressure 1200 PSI 1200 PSI 1200 PSI 1200 PSI 1200 PSI 1000 PSI 1000 PSI
Thread OD 1/4" 3/8" 1/2" 5/8" 3/4" 1" 1-1/4"
Crossover Series:
110F
Part Number Thread SizeMale NPTF x Female NPTF A Approx. Weight
(Lbs.)
28121
(28-121)		 1/4" x 1/8" 0.45" 0.01
28122
(28-122)		 3/8" x 1/8" 0.50" 0.03
28116
(28-116)		 3/8" x 1/4" 0.50" 0.02
28090
(28-090)		 1/2" x 1/8" 0.56" 0.06
28128
(28-128)		 1/2" x 1/4" 0.56" 0.05
28117
(28-117)		 1/2" x 3/8" 0.56" 0.03
28129
(28-129)		 3/4" x 1/4" 0.62" 0.11
28130
(28-130)		 3/4" x 3/8" 0.62" 0.08
28118
(28-118)		 3/4" x 1/2" 0.64" 0.03
28120 1" x 1/2" 0.75" 0.11
28119
(28-119)		 1" x 3/4" 0.77" 0.10
Midland Industries

Midland Industries

Midland Industries is a family of brands recognizable industry wide. Midland is a supplier of brass fittings, valves, and accessories for hose, pipe and tube in brass, bronze, stainless steel, steel, malleable iron, and plastics.
