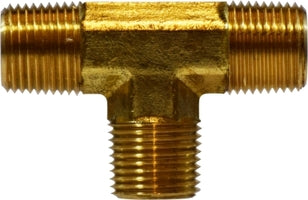

28293 (28-293) Midland Forged All Male Tee - 1/2" Male NPTF x 1/2" Male NPTF x 1/2" Male NPTF - Brass

28293 by Midland | Forged All | 1/2" Male NPTF x 1/2" Male NPTF x 1/2" Male NPTF | Tee | Brass

Save $0.81 Save $0.81
$7.29
$7.29 - $7.29
$7.29
$6.48
$6.48 - $6.48
$6.48

Midland Industries
Brass Fitting - Pipe Thread - Forged All Male Tee

Inventory @ Manufacturers Warehouse: 1831 Units
Specifications for Variant SKU: 28293 Midland
Shape (Orientation): Tee
Ends Configuration: 1/2in Male NPTF, 1/2in Male NPTF, 1/2in Male NPTF, Some Ends Match
Material(s): Brass
Applicable Specs & Approvals: Applicable ASA Standards, Applicable ASME Standards, Applicable SAE Standards

SPECIFICATIONS

Applications: Grease, Fuels, LP and Natural Gas (available on special order), Refrigeration, Instrumentation and Hydraulic Systems Used With: Brass, Bronze, Copper, Steel, Aluminum and Iron Pipe
SAE Rating: N/A Conformance: Meets specifications and standards of ASA, ASME and SAE
Vibration: Fair Resistance. Temperature Range: -65°F to +250°F (-53°C to +121°C)
Tolerance: +/- .02 on all dimensions. Dimension Data can change without notice. Lead Free: Not Lead Free
Pipe Size 1/16" 1/8" 1/4" 3/8" 1/2" 3/4" 1"
Thread Size 1/16-27 1/8-27 1/4-18 3/8-18 1/2-14 3/4-14 1-11-1/2
Working Pressure 1200 PSI 1200 PSI 1200 PSI 1200 PSI 1200 PSI 1000 PSI 1000 PSI
Thread OD 1/4" 3/8" 1/2" 5/8" 3/4" 1" 1-1/4"
Crossover Series:
132F T12 M101
Part Number Thread Size
Male NPTF 		A B Body Width Approx. Weight
(Lbs.)
28290
(28-290)		 1/8" 0.75" 0.75" 0.43" 0.06
28291
(28-291)		 1/4" 0.86" 0.86" 0.43" 0.08
28292
(28-292)		 3/8" 1.09" 1.09" 0.60" 0.16
28293
(28-293)		 1/2" 1.22" 1.22" 0.68" 0.22
28294
(28-294)		 3/4" 1.43" 1.43" 0.87" 0.38
Midland Industries

Midland Industries

Midland Industries is a family of brands recognizable industry wide. Midland is a supplier of brass fittings, valves, and accessories for hose, pipe and tube in brass, bronze, stainless steel, steel, malleable iron, and plastics.
