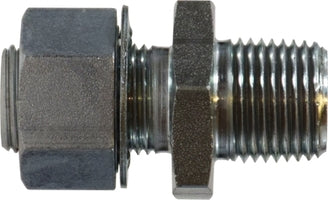

28309 (28-309) Midland Female x Male Pipe Bulkhead Fitting - 1/4-18 Female NPTF x 1/2-14 NPTF - 2.16" Length - Steel

28309 by Midland | Pipe Bulkhead Fitting | 1/4-18 Female NPTF x 1/2-14 NPTF | 2.16" Length | Steel

Save $2.05 Save $2.05
$18.41
$18.41 - $18.41
$18.41
$16.36
$16.36 - $16.36
$16.36

Midland Industries
Brass Fitting - Bulkhead Fitting - Female x Male Pipe Bulkhead Fitting
Specifications for Variant SKU: 28309 Midland
Shape (Orientation): Straight
Ends Configuration: 1/2in Male NPTF, 1/2in Male NPTF, Some Ends Match
Material(s): Steel
Applicable Specs & Approvals: Applicable ASA Standards, Applicable ASME Standards, Applicable SAE Standards
Applications: Grease, Fuels, LP and Natural Gas (available on special order), Refrigeration, Instrumentation and Hydraulic Systems Used With: Brass, Bronze, Copper, Steel, Aluminum and Iron Pipe
SAE Rating: N/A Conformance: Meets specifications and standards of ASA, ASME and SAE
Vibration: Fair Resistance. Temperature Range: -65°F to +250°F (-53°C to +121°C)
Tolerance: +/- .02 on all dimensions. Dimension Data can change without notice. Lead Free: Not Lead Free
Pipe Size 1/16" 1/8" 1/4" 3/8" 1/2" 3/4" 1"
Thread Size 1/16-27 1/8-27 1/4-18 3/8-18 1/2-14 3/4-14 1-11-1/2
Working Pressure 1200 PSI 1200 PSI 1200 PSI 1200 PSI 1200 PSI 1000 PSI 1000 PSI
Thread OD 1/4" 3/8" 1/2" 5/8" 3/4" 1" 1-1/4"
Part Number A B C Length (in.)
28309
(28-309)		 1/4-18 NPTF 3/4-16 UNS 1/2-14 NPTF 2.16"
28310
(28-310)		 1/4-18 NPTF 3/4-16 UNS 1/2-14 NPTF 2.53"
