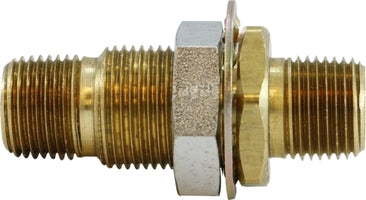

28313 (28-313) Midland FIP x MIP Bulkhead Fitting - 1/4-18 Female NPTF x 1-14 Male UNS x 1/2-14" - 2-7/8" Length - Brass

28313 by Midland | FIP x MIP Bulkhead Fitting | 1/4-18 Female NPTF x 1-14 Male UNS | 1/2-14" | 2-7/8" Length | Brass

Save $2.38

$21.39

$21.39 - $21.39

$21.39

$19.01

$19.01 - $19.01

$19.01

Midland Industries
Brass Fitting - Bulkhead Fitting - Female Pipe x Male Pipe

Inventory @ Manufacturers Warehouse: 266 Units

Quantity

Specifications for Variant SKU: 28313 Midland
Shape (Orientation):	Straight
Ends Configuration:	1/4in Female NPTF, 1/4in Male NPTF
Material(s):	Brass
Applicable Specs & Approvals:	Applicable ASA Standards, Applicable ASME Standards, Applicable SAE Standards

SPECIFICATIONS

Applications:	Grease, Fuels, LP and Natural Gas (available on special order), Refrigeration, Instrumentation and Hydraulic Systems	Used With:	Brass, Bronze, Copper, Steel, Aluminum and Iron Pipe
SAE Rating:	N/A	Conformance:	Meets specifications and standards of ASA, ASME and SAE
Vibration:	Fair Resistance.	Temperature Range:	-65°F to +250°F (-53°C to +121°C)
Tolerance:	+/- .02 on all dimensions. Dimension Data can change without notice.	Lead Free:	Not Lead Free

Pipe Size	1/16"	1/8"	1/4"	3/8"	1/2"	3/4"	1"
Thread Size	1/16-27	1/8-27	1/4-18	3/8-18	1/2-14	3/4-14	1-11-1/2
Working Pressure	1200 PSI	1200 PSI	1200 PSI	1200 PSI	1200 PSI	1000 PSI	1000 PSI
Thread OD	1/4"	3/8"	1/2"	5/8"	3/4"	1"	1-1/4"


Part Number	A	B	C	Length (in.)
28313 (28-313)	1/4-18 NPTF	1-14 UNS	1/2-14 NPTF	2-7/8"
