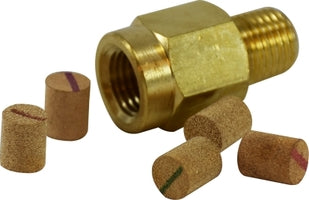

28354 (28-354) Midland Pneumatic Pressure Snubber - 1/4" Male Pipe - Porosity: 40um - Brass

28354 by Midland | Pneumatic Pressure Snubber | 1/4" Male Pipe | Porosity: 40um | Brass

Save $1.91 Save $1.91
$17.19
$17.19 - $17.19
$17.19
$15.28
$15.28 - $15.28
$15.28

Midland Industries
Pneumatic Pressure Snubber - Brass

Application: Protect pressure instruments from sudden pressure surges and fluctuations providing more accurate gauge readings.

Inventory @ Manufacturers Warehouse: 47 Units
Specifications for Variant SKU: 28354 Midland
Shape (Orientation): No Orientation
Material(s): Brass
Features:
  • Body: Brass
  • Element: Sintered Bronze.
  • Max Operating Pressure: 9000 PSI
  • Temperature: 35° to 300°F
  • Construction: Solid brass housing with porous bronze element.
  • Can be used for mini in-line filters.
  • 5 different porosity elements per package, allows each user to adjust snubbing capacity for the specific application.
Recommended Element Porosity Rating
Rating Color Recommended Application
40 um None Viscous Fluids (over 500 ssu)
Part Number Size Porosity
28354
(28-354)		 1/4" 40 um
28353
(28-353)		 1/4" 30 um
28352
(28-352)		 1/4" 25 um
28351
(28-351)		 1/4" 20 um
28350
(28-350)		 1/4" 10 um
