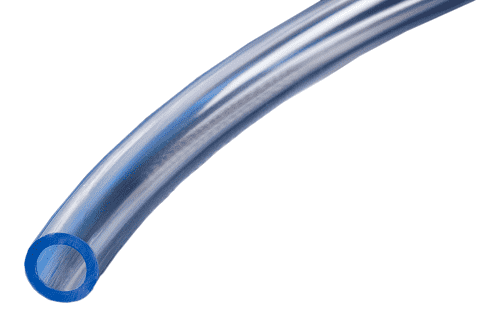

2840-04X100 Kuri-Tec by Kuriyama | 2840 Series | 95 Shore "A" Ether-Based Tint Heavy Duty Tubing | 1/4" ID | .375" OD | Blue | Polyurethane | 100ft Length

2840-04X100 Kuri-Tec by Kuriyama | 2840 Series | 95 Shore "A" Ether-Based Tint Heavy Duty Tubing | 1/4" ID | .375" OD | Blue | Polyurethane | 100ft Length

Save $10.14 Save $10.14
$100.74
$100.74 - $100.74
$100.74
$90.60
$90.60 - $90.60
$90.60

Kuriyama Kuri Tec® Series 2840 95 Shore "A" Ether-Based Blue Tint Heavy Duty Polyurethane Tubing Ether-based polyurethane tubing available in colors for transfer of air, fluids and abrasive slurries.

Package Quantity: 100 FT

Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: 2840-04X100 Kuriyama | 100 |
Brand: Kuri Tec
Series: 2840 Series
Hose Color(s): Clear/Semi-Clear
Internal Diameter: 0.25in
Outer Diameter: 0.375in
Tubing Construction: Polyurethane
Applicable Specs & Approvals: Applicable FDA Requirements, Applicable NSF Requirements, RoHS Compliant

SPECIFICATIONS

Application: Transfer of air and fluids under severe conditions. Feed and return lines, Abrasive slurry transfer, Granular transfer lines, Robotics control lines, Insulating sleeves, Lubrication lines, Metering pumps SAE Rating: N/A
Other Ratings: N/A Tube: 95 Shore "A" Durometer ether-based polyurethane tubing in transparent FDA(07) Blue tint
Reinforcement: N/A Cover: N/A
Temperature Range: 40 deg. F (-40 deg. C) to +175 deg. F (+80 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Specifications FDA(07), RoHS(15)
Other Features:
  • Abrasion and cut resistance.
  • Good flex fatigue and resilience characteristics.
  • Excellent resistance to ozone, solvents and fuel.
  • Good resistance to hydrolysis and algae.
  • Slight Blue* tint allows see-through convenience.
  • Complies with RMA's Class A designation for high oil resistance.
  • Silicone-free.
  • One-piece lengths.

Part Number Nominal ID Nominal OD Working Pressure Standard Lengths Approx Weight per Pkg
(in.) (mm) (in.) (mm) @ 70 deg. F (20 deg. C) (PSI) @ 122 deg. F (50 deg. C) (PSI) Spool/Box Coil/Box
2840-04X100 1/4" 6.5mm .375" 9.5mm 125 PSI 75 PSI N/A 100ft 3.1 lbs.
2840-04X300 1/4" 6.5mm .375" 9.5mm 125 PSI 75 PSI 300ft N/A 9.5 lbs.
2840-05X100 5/16" 8.0mm .472" 12.0mm 125 PSI 75 PSI N/A 100 ft 4.9 lbs.
2840-05X300 5/16" 8.0mm .472" 12.0mm 125 PSI 75 PSI 300 ft N/A 14.7 lbs
2840-06X100 3/8" 9.5mm .570" 14.5mm 125 PSI 75 PSI N/A 100ft 7.2 lbs.
2840-06X300 3/8" 9.5mm .570" 14.5mm 125 PSI 75 PSI 300ft N/A 21.7 lbs

* Note: The Blue tint Series 2840 material conforms to the same FDA regulations as Series 2600. Note: Working Pressure decreases as temperature increases. Pressure ratings can only be obtained with proper coupling procedures. Note: When exceptional oil and fuel resistance is needed, we suggest use of Series 2810 ester-based tubing which is RoHS(15) compliant - call for details.
