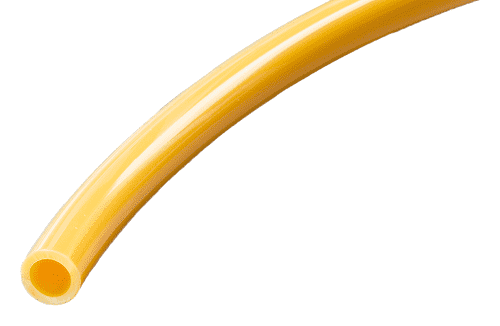

2841-06X100 Kuri-Tec by Kuriyama | 2841 Series | 95 Shore "A" Ether-Based Heavy Duty Tubing | 3/8" ID | .570" OD | Yellow | Polyurethane | 100ft Length

2841-06X100 Kuri-Tec by Kuriyama | 2841 Series | 95 Shore "A" Ether-Based Heavy Duty Tubing | 3/8" ID | .570" OD | Yellow | Polyurethane | 100ft Length

Save $19.70 Save $19.70
$197.03
$197.03 - $197.03
$197.03
$177.33
$177.33 - $177.33
$177.33

Kuriyama Kuri Tec® Series 2841 95 Shore "A" Ether-Based Yellow Heavy Duty Polyurethane Tubing Ether-based polyurethane tubing available in colors for transfer of air, fluids and abrasive slurries.

Package Quantity: 100 FT

Specifications for Variant SKU: 2841-06X100 Kuriyama | 100 |
Brand: Kuri Tec
Series: 2841 Series
Hose Color(s): Yellow
Internal Diameter: 0.375in
Outer Diameter: 0.57in
Tubing Construction: Polyurethane
Applicable Specs & Approvals: Applicable FDA Requirements, Applicable NSF Requirements, RoHS Compliant

SPECIFICATIONS

Application: Transfer of air and fluids under severe conditions. Feed and return lines, Abrasive slurry transfer, Granular transfer lines, Robotics control lines, Insulating sleeves, Lubrication lines, Metering pumps SAE Rating: N/A
Other Ratings: N/A Tube: 95 Shore "A" Durometer ether-based polyurethane tubing in Yellow
Reinforcement: N/A Cover: N/A
Temperature Range: 40 deg. F (-40 deg. C) to +175 deg. F (+80 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Specifications RoHS(15)
Other Features:
  • Abrasion and cut resistance.
  • Good flex fatigue and resilience characteristics.
  • Excellent resistance to ozone, solvents and fuel.
  • Good resistance to hydrolysis and algae.
  • Complies with RMA's Class A designation for high oil resistance.
  • Silicone-free.
  • One-piece lengths.

Part Number Nominal ID Nominal OD Working Pressure Standard Lengths Approx Weight per Pkg
(in.) (mm) (in.) (mm) @ 70 deg. F (20 deg. C) (PSI) @ 122 deg. F (50 deg. C) (PSI) Spool/Box Coil/Box
2841-04X100 1/4" 6.5mm .375" 9.5mm 125 PSI 75 PSI N/A 100ft 3.1 lbs.
2841-04X300 1/4" 6.5mm .375" 9.5mm 125 PSI 75 PSI 300ft N/A 9.5 lbs.
2841-05X100 5/16" 8.0mm .472" 12.0mm 125 PSI 75 PSI N/A 100 ft 4.9 lbs.
2841-05X300 5/16" 8.0mm .472" 12.0mm 125 PSI 75 PSI 300 ft N/A 14.7 lbs
2841-06X100 3/8" 9.5mm .570" 14.5mm 125 PSI 75 PSI N/A 100ft 7.2 lbs.
2841-06X300 3/8" 9.5mm .570" 14.5mm 125 PSI 75 PSI 300ft N/A 21.7 lbs

Note: Working Pressure decreases as temperature increases. Pressure ratings can only be obtained with proper coupling procedures. Note: When exceptional oil and fuel resistance is needed, we suggest use of Series 2810 ester-based tubing which is RoHS(15) compliant - call for details.
