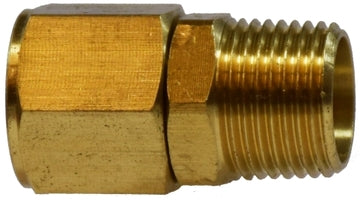

28427 (28-427) Midland Pipe Swivel Adapter - 1/2" Female NPTF x 1/2" Male NPTF - Brass

28427 by Midland | Pipe Swivel | 1/2" Female NPTF x 1/2" Male NPTF | Adapter | Brass

Save $2.68 Save $2.68
$24.10
$24.10 - $24.10
$24.10
$21.42
$21.42 - $21.42
$21.42

Midland Industries
Brass Fitting - Pipe Thread - Pipe Swivel Adapter

Inventory @ Manufacturers Warehouse: 61 Units
Specifications for Variant SKU: 28427 Midland
Shape (Orientation): Straight
Ends Configuration: 1/2in Female NPTF, 1/2in Male NPTF
Material(s): Brass
Applicable Specs & Approvals: Applicable ASA Standards, Applicable ASME Standards, Applicable SAE Standards

SPECIFICATIONS

Applications: Grease, Fuels, LP and Natural Gas (available on special order), Refrigeration, Instrumentation and Hydraulic Systems Used With: Brass, Bronze, Copper, Steel, Aluminum and Iron Pipe
SAE Rating: N/A Conformance: Meets specifications and standards of ASA, ASME and SAE
Vibration: Fair Resistance. Temperature Range: -65°F to +250°F (-53°C to +121°C)
Tolerance: +/- .02 on all dimensions. Dimension Data can change without notice. Lead Free: Not Lead Free
Pipe Size 1/16" 1/8" 1/4" 3/8" 1/2" 3/4" 1"
Thread Size 1/16-27 1/8-27 1/4-18 3/8-18 1/2-14 3/4-14 1-11-1/2
Working Pressure 300 PSI 300 PSI 300 PSI 300 PSI 300 PSI 300 PSI 300 PSI
Thread OD 1/4" 3/8" 1/2" 5/8" 3/4" 1" 1-1/4"
Part Number Thread Size
Female NPTF x Male NPTF		 A Hex 1 Hex 2 Approx. Weight
(Lbs.)
28424
(28-424)		 1/8" 1.10" 0.43" 0.50" 0.05
28425
(28-425)		 1/4" 1.34" 0.56" 0.62" 0.06
28426
(28-426)		 3/8" 1.36" 0.68" 0.75" 0.08
28427
(28-427)		 1/2" 1.87" 0.87" 0.95" 0.10

(300 PSI all sizes)

Midland Industries

Midland Industries

Midland Industries is a family of brands recognizable industry wide. Midland is a supplier of brass fittings, valves, and accessories for hose, pipe and tube in brass, bronze, stainless steel, steel, malleable iron, and plastics.
