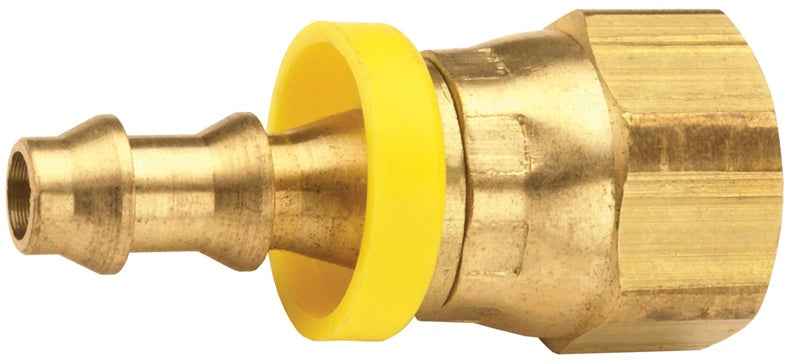

2880509C by Dixon Valve | Push-On Hose Barb Fitting | Female 37° JIC Swivel | 3/8" Tube OD | 5/16" Hose ID x 3/8" Female JIC | Brass

2880509C by Dixon Valve | Push-On Hose Barb Fitting | Female 37° JIC Swivel | 3/8" Tube OD | 5/16" Hose ID x 3/8" Female JIC | Brass

Save $0.32 Save $0.32
$3.88
$3.88 - $3.88
$3.88
$3.56
$3.56 - $3.56
$3.56

Dixon Valve
Push-On Hose Barb Fitting | Female 37° JIC Swivel x Hose Barb

Intended for use with Lok-On (push-on style) hose only.
Specifications for Variant SKU: 2880509C Dixon
Series: 288 Series
Shape (Orientation): Straight
Ends Configuration: 5/16in Hose Barb, 3/8in Female JIC
Material(s): Brass
Features:
  • No hose clamps or ferrules are needed for installation.
Material:
  • Brass
  • Yellow Plastic Cap (Part numbers that end with CBC have Brass Caps.)
Specifications:
  • Temperature Range: -40 to +150°F
  • Pressure Rating: 350 PSI
Safety Notes:
  • Dixon push-on fittings are intended for use with Lok-On (push-on style) hose only.
  • Caution: Push-on fittings will properly grip push-on hose only when pushed all the way in, with the cut end of the hose completely concealed by the plastic cap.
Installation:
  • Assembly Instructions:
    • 1. Trim hose end with smooth square cut.
    • 2. Lubricate either push-on fitting, hose or both.
    • 3. Insert push-on fitting into hose until first barb is in hose.
    • 4. Place end of fitting against a flat object (bench, wall, etc.) and grip the hose one inch from end. Push with a steady force until end of hose is covered by yellow plastic cap.
  • Disassembly Instructions:
    • 1. Leaving push-on fitting in place, make a 1" cut in the hose along the barbed end of the fitting. Note: Be careful not to nick barbs when cutting the hose.
    • 2. With firm grip on hose, give a sharp downward pull to release the fitting from the hose.
Brass 303 Stainless Steel Hose I.D. Tube O.D. Female UNF
Part Number Previous
Part Number		 Part Number Previous
Part Number
2880409C 288-0409 - - 1/4" 3/8" 9/16"-18
2880409CBC* - - - 1/4" 3/8" 9/16"-18
2880509C 288-0509 - - 5/16" 3/8" 9/16"-18
2880609C 288-0609 2880609SS 288-0609SS 3/8" 3/8" 9/16"-18
2880609CBC* - - - 3/8" 3/8" 9/16"-18
2880809C 288-0809 - - 1/2" 3/8" 9/16"-18
2881217C 288-1217 2881217SS 288-1217SS 3/4" 3/4" 1-1/16"-12**
2881217CBC* - - - 3/4" 3/4" 1-1/16"-12**
2881621C 288-1621 2881621SS 288-1621SS 1" 1" 1-5/16"-12**

* 2 Brass cap on CBC parts

** UN Thread
