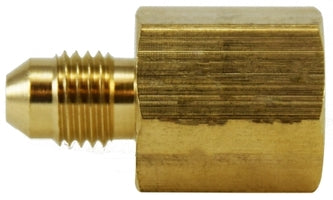

28963 (28-963) Midland JIC 37° Flare - Female Straight Adapter - 5/8" Tube OD - 1/2-14" Pipe - 7/8-14 Tube Thread - Brass

28963 by Midland | JIC 37° Flare | 5/8" Tube OD | 1/2-14" Pipe | 7/8-14 Tube Thread | Straight | Adapter | Brass

Save $2.22

$14.27

$14.27 - $14.27

$14.27

$12.05

$12.05 - $12.05

$12.05

Midland Industries
Brass Fitting - JIC 37° Flare - Female Straight Adapter - Male JIC 37° Flare x Female Pipe - Brass

Quantity

Specifications for Variant SKU: 28963 Midland
Shape (Orientation):	Straight
Material(s):	Brass

Part Number	Tube OD	Pipe	Tube Thread	Length	Hex	Working Pressure
28957 (28-957)	1/4"	1/8-27	7/16-20	1.19"	0.56"	3250 PSI
28958 (28-958)	1/4"	1/4-18	7/16-20	1.40"	0.75"	3250 PSI
28959 (28-959)	3/8"	1/4-18	9/16-18	1.40"	0.75"	3250 PSI
28960 (28-960)	3/8"	3/8-18	9/16-18	1.40"	0.88"	3250 PSI
28961 (28-961)	1/2"	3/8-18	3/4-16	1.56"	0.88"	3250 PSI
28962 (28-962)	1/2"	1/2-14	3/4-16	1.79"	1.13"	3250 PSI
28963 (28-963)	5/8"	1/2-14	7/8-14	1.87"	1.13"	3250 PSI
28964 (28-964)	3/4"	3/4-1/4	1-1/16-12	2.06"	1.38"	2600 PSI

Midland Industries

Midland Industries is a family of brands recognizable industry wide. Midland is a supplier of brass fittings, valves, and accessories for hose, pipe and tube in brass, bronze, stainless steel, steel, malleable iron, and plastics.
