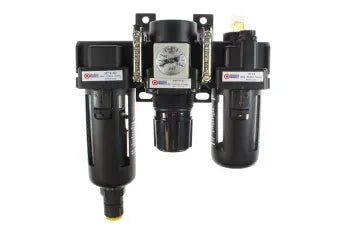

29-4T12-00 by Coilhose | 29 Series Integral Assembly | Filter, Regulator, & Lubricator | Manual | 1/2" Pipe Size | Aluminum

Save $138.69

$346.73

$346.73 - $346.73

$346.73

$208.04

$208.04 - $208.04

$208.04

Coilhose Pneumatics - Filters, Regulators & Lubricators - 29 Series - Integral Filter, Regulator, and & Lubricator Combination Units

Quantity

Specifications for Variant SKU: 29-4T12-00 Coilhose
Material(s):	Polycarbonate, Aluminum, Polypropylene

Overview:
The 29 Series of Filters - Regulators - Lubricators are made from lightweight aluminum bodies, which lend themselves to a wide variety of applications. These filters, regulators and lubricators are also "modular" in design, meaning the individual units can be removed from the line without disturbing the piping or other components. The 29 Series modular connecting system is designed to save space, making it ideal for OEM equipment as well as suitable for tight areas in shop or factory air lines and assembly areas.
Features:
Modular design Metal bowl option Low pressure spring option 40 micron element standard 5, 20 micron element option
Warning:
Although polycarbonate bowls are capable of withstanding extreme physical abuse, they are susceptible to damage and may possibly burst when subjected to some cleaning products and synthetic oils, particularly phosphate esters. Should there be any questions regarding their compatibility with your applications, consult the factory or use a metal bowl.

Proof Pressure:	220 PSI	Max Operating Pressure:	145 PSI
Maximum Operating Temp.:	Plastic Bowl: 140° F Metal Bowl: 150° F	Ambient & Fluid Temp:	32° F to 140° F
Nominal Filtration Rating¹:	Standard: 40 Micron Optional: 5, 20 Micron	Materials:	Plastic Bowl: Polycarbonate Metal Bowl²: Aluminum Body: Aluminum Filter Element: Polypropylene
Bowl Guard³	Steel	Regulating Range⁴:	5 PSI - 120 PSI
Regulator Construction:	Relieving Type	Gauge⁵:	Square

ManualModel	Auto DrainModel	Pipe Size	Max. FlowRate CFM	Individual Parts	Features
Filter / Regulator + Lubricator
29-2D18-00	29-2D18-00D	1/8"	20	Filter/Regulator: 29-2C18-00D Lubricator: 29-2L18	Mini
-	29-2D18-00DM	1/8"	20	Filter/Regulator: 29-2C18-00DM Lubricator: 29-2L18-M	Mini, Metal Bowl
29-2D14-00	29-2D14-00D	1/4"	20	Filter/Regulator: 29-2C14-00D Lubricator: 29-2L14	Mini
-	29-2D14-00DM	1/4"	20	Filter/Regulator: 29-2C14-00DM Lubricator: 29-2L14-M	Mini, Metal Bowl
29-3D14-00	29-3D14-00D	1/4"	60	Filter/Regulator: 29-3C14-00D Lubricator: 29-3L14	Compact
-	29-3D14-00DM	1/4"	60	Filter/Regulator: 29-3C14-00DM Lubricator: 29-3L14-M	Compact, Metal Bowl
29-3D38-00	29-3D38-00D	3/8"	60	Filter/Regulator: 29-3C38-00D Lubricator: 29-3L38	Compact
-	29-3D38-00DM	3/8"	60	Filter/Regulator: 29-3C38-00DM Lubricator: 29-3L38-M	Compact, Metal Bowl
29-4D38-00	29-4D38-00D	3/8"	106	Filter/Regulator: 29-4C38-00D Lubricator: 29-4L38	Standard
-	29-4D38-00DM	3/8"	106	Filter/Regulator: 29-4C38-00DM Lubricator: 29-4L38-M	Standard, Metal Bowl
29-4D12-00	29-4D12-00D	1/2"	106	Filter/Regulator: 29-4C12-00D Lubricator: 29-4L12	Standard
-	29-4D12-00DM	1/2"	106	Filter/Regulator: 29-4C12-00DM Lubricator: 29-4L12-M	Standard, Metal Bowl
Filter + Regulator + Lubricator
29-2T18-00	29-2T18-00D	1/8"	20	Filter: 29-2F18-0D Regulator: 29-2R18-0 Lubricator: 29-2L18	Mini
-	29-2T18-00DM	1/8"	20	Filter: 29-2F18-0DM Regulator: 29-2R18-0 Lubricator: 29-2L18-M	Mini, Metal Bowl
29-2T14-00	29-2T14-00D	1/4"	20	Filter: 29-2F14-0D Regulator: 29-2R14-0 Lubricator: 29-2L14	Mini
-	29-2T14-00DM	1/4"	20	Filter: 29-2F14-0DM Regulator: 29-2R14-0 Lubricator: 29-2L14-M	Mini, Metal Bowl
29-3T14-00	29-3T14-00D	1/4"	70	Filter: 29-3F14-0D Regulator: 29-3R14-0 Lubricator: 29-3L14	Compact
-	29-3T14-00DM	1/4"	70	Filter: 29-3F14-0D Regulator: 29-3R14-0 Lubricator: 29-3L14	Compact, Metal Bowl
29-3T38-00	29-3T38-00D	3/8"	70	Filter: 29-3F38-0D Regulator: 29-3R38-0 Lubricator: 29-3L38	Compact
-	29-3T38-00DM	3/8"	70	Filter: 29-3F38-0DM Regulator: 29-3R38-0 Lubricator: 29-3L38-M	Compact, Metal Bowl
29-4T38-00	29-4T38-00D	3/8"	110	Filter: 29-4F38-0D Regulator: 29-4R38-0 Lubricator: 29-4L38	Standard
-	29-4T38-00DM	3/8"	110	Filter: 29-4F38-0DM Regulator: 29-4R38-0 Lubricator: 29-4L38-M	Standard, Metal Bowl
29-4T12-00	29-4T12-00D	1/2"	140	Filter: 29-4F12-0D Regulator: 29-4R12-0 Lubricator: 29-4L12	Standard
-	29-4T12-00DM	1/2"	140	Filter: 29-4F12-0DM Regulator: 29-4R12-0 Lubricator: 29-4L12-M	Standard, Metal Bowl
29-5T34-00	29-5T34-00D	3/4"	175	Filter: 29-5F34-0D Regulator: 29-5R34-0 Lubricator: 29-5L34	HiFlow
-	29-5T34-00DM	3/4"	175	Filter: 29-5F34-0DM Regulator: 29-5R34-0 Lubricator: 29-5L34-M	HiFlow, Metal Bowl
29-5T10-00	29-5T10-00D	1"	175	Filter: 29-5F10-0D Regulator: 29-5R10-0 Lubricator: 29-5L10	HiFlow
-	29-5T10-00DM	1"	175	Filter: 29-5F10-0DM Regulator: 29-5R10-0 Lubricator: 29-5L10-M	HiFlow, Metal Bowl

¹Standard: 40 micron - Options: 5, 20 micron
²Metal Bowl is available on all Series
³No bowl guard on Series 2D, 2T
⁴Option: Low Pressure Regulating Range 5 - 35 psi
⁵Option: Round gauge
