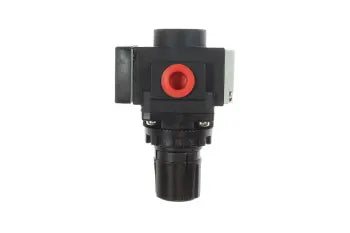

29-5R34-0 by Coilhose | 29 Series Regulator | Manual | HiFlow | 3/4" Pipe Size | Aluminum

29-5R34-0 by Coilhose | 29 Series Regulator | Manual | HiFlow | 3/4" Pipe Size | Aluminum

Save $13.25 Save $13.25
$119.24
$119.24 - $119.24
$119.24
$105.99
$105.99 - $105.99
$105.99
Coilhose Pneumatics - Filters, Regulators & Lubricators - 29 Series - Regulators
Specifications for Variant SKU: 29-5R34-0 Coilhose
Material(s): Aluminum
Overview:
  • The 29 Series of Filters - Regulators - Lubricators are made from lightweight aluminum bodies, which lend themselves to a wide variety of applications. These filters, regulators and lubricators are also "modular" in design, meaning the individual units can be removed from the line without disturbing the piping or other components. The 29 Series modular connecting system is designed to save space, making it ideal for OEM equipment as well as suitable for tight areas in shop or factory air lines and assembly areas.
Features:
  • Modular design
  • Low pressure spring option available.
Warning:
  • Although polycarbonate bowls are capable of withstanding extreme physical abuse, they are susceptible to damage and may possibly burst when subjected to some cleaning products and synthetic oils, particularly phosphate esters. Should there be any questions regarding their compatibility with your applications, consult the factory or use a metal bowl.
Proof Pressure: 220 PSI Max Operating Pressure: 145 PSI
Ambient & Fluid Temp: 32° F to 140° F Regulating Range1: 5 PSI - 120 PSI
Construction: Relieving Type Body Material Aluminum
Gauge2: Square

ManualModel Pipe Size Max. FlowRate CFM GaugePort Features
29-2R18-0 1/8" 20 1/8" Square Gauge
29-2R14-0 1/4" 20 1/8" Square Gauge
29-3R14-0 1/4" 90 1/8" Compact, Square Gauge
29-3R38-0 3/8" 90 1/8" Compact, Square Gauge
29-4R38-0 3/8" 212 1/4" Square Gauge
29-4R12-0 1/2" 212 1/4" Square Gauge
29-5R34-0 3/4" 280 1/4" HiFlow, Square Gauge
29-5R10-0 1" 280 1/4" HiFlow, Square Gauge
1Option: Low Pressure Regulating Range: 5-35 PSI
2Option: Round Gauge
