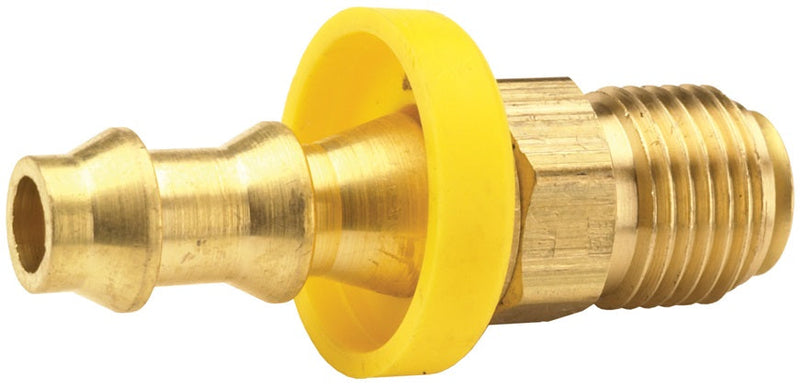

2900510C by Dixon Valve | Push-On Hose Barb Fitting | Male SAE Inverted Flare Swivel | 3/8" Tube OD | 5/16" Hose ID x 3/8" Male Inverted Flare | Brass

2900510C by Dixon Valve | Push-On Hose Barb Fitting | Male SAE Inverted Flare Swivel | 3/8" Tube OD | 5/16" Hose ID x 3/8" Male Inverted Flare | Brass

Save $0.54 Save $0.54
$6.45
$6.45 - $6.45
$6.45
$5.91
$5.91 - $5.91
$5.91

Dixon Valve
Push-On Hose Barb Fitting | Male SAE Inverted Flare Swivel x Hose Barb

Intended for use with Lok-On (push-on style) hose only.
Specifications for Variant SKU: 2900510C Dixon
Series: 290 Series
Shape (Orientation): Straight
Ends Configuration: 5/16in Hose Barb, 3/8in Male Inverted Flare
Material(s): Brass
Features:
  • No hose clamps or ferrules are needed for installation.
Material:
  • Brass
  • Yellow Plastic Cap (Part numbers that end with CBC have Brass Caps.)
Specifications:
  • Temperature Range: -40 to +150°F
  • Pressure Rating: 350 PSI
Safety Notes:
  • Dixon push-on fittings are intended for use with Lok-On (push-on style) hose only.
  • Caution: Push-on fittings will properly grip push-on hose only when pushed all the way in, with the cut end of the hose completely concealed by the plastic cap.
Installation:
  • Assembly Instructions:
    • 1. Trim hose end with smooth square cut.
    • 2. Lubricate either push-on fitting, hose or both.
    • 3. Insert push-on fitting into hose until first barb is in hose.
    • 4. Place end of fitting against a flat object (bench, wall, etc.) and grip the hose one inch from end. Push with a steady force until end of hose is covered by yellow plastic cap.
  • Disassembly Instructions:
    • 1. Leaving push-on fitting in place, make a 1" cut in the hose along the barbed end of the fitting. Note: Be careful not to nick barbs when cutting the hose.
    • 2. With firm grip on hose, give a sharp downward pull to release the fitting from the hose.
Part Number Previous
Part Number		 Hose I.D. Tube O.D. Male UNF
2900406C 290-0406 1/4" 3/16" 3/8"-24
2900406CBC** - 1/4" 3/16" 3/8"-24
2900407C 290-0407 1/4" 1/4" 7/16"-24*
2900407CBC** - 1/4" 1/4" 7/16"-24*
2900408C 290-0408 1/4" 5/16" 1/2"-20
2900408CBC** - 1/4" 5/16" 1/2"-20
2900508C 290-0508 5/16" 5/16" 1/2"-20
2900510C 290-0510 5/16" 3/8" 5/8"-18
2900608C 290-0608 3/8" 5/16" 1/2"-20
2900610C 290-0610 3/8" 3/8" 5/8"-18
2900610CBC** - 3/8" 3/8" 5/8"-18
2900812C 290-0812 1/2" 1/2" 3/4"-18*
2901014C 290-1014 5/8" 5/8" 7/8"-18*

* UNS thread
** Brass cap on CBC parts
