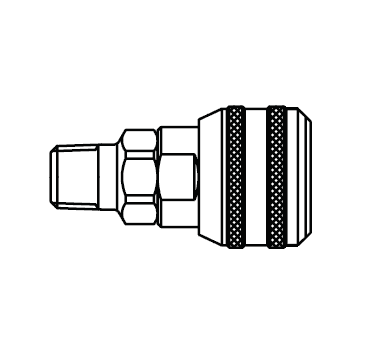

2900SL Eaton 3000 Series Female Socket 1/8-27 Male NPTF End Connection Pneumatic Quick Disconnect Coupling with Sleeve Lock - Buna-N Seal - Brass

2900SL by Danfoss | 3000 Series | Female Socket | 1/8-27 Male NPTF End Connection | Pneumatic Quick Disconnect Coupling with Sleeve Lock - Buna-N Seal | Brass

$26.48 - $26.48
$26.48
$26.48 - $26.48
$26.48

Eaton 3000 Series - Quick Disconnect Couplings - Male NPTF Sockets & Plugs
Specifications for Variant SKU: 2900SL Danfoss
Shape (Orientation): Straight
Material(s): Brass
Seal Material(s): Buna-N/Nitrile Rubber
Features:
  • Easy, automatic, push-to-connect design provides instantaneous connection and disconnection of lines, plus automatic shut-off of socket/female end of line.
Applications & Markets:
  • Industrial Breathing Air
  • General Pneumatics
  • Maintenance & Repair
  • Fluid Transfer
Materials:
  • Standard body material: Brass
  • Standard seal material: Nitrile (NBR)
Specifications:
  • All sizes accept US industrial Interchange; 1/4" & 1/2" also accept ISO 6150 Series B and A-A-59439 plugs/males.
Series Body Size Max. Operating Pressure Min. Burst Pressure Rated Flow
3000 1/4" 138 bar 2,000 psi 552 bar 8,000 psi 680 lpm 24 gpm
Interchangeability
All Sizes 1/4" & 1/2"
US Industrial Interchange ISO 6150 Series B
A-A-59439
(former MIL-C-4109)
Socket/Female
(Figure 1)
Plug/Male
(Figure 2)
3000 Series | Sockets
Part Number Coupling Type Body Size Port Size Thread Material Figure Dimensions
A B Hex
2900 Socket/Female 1/4" 1/8" 1/8-27 Male NPTF Brass 1 2.00"
(50.80mm)		 1.19"
(30.23mm)		 0.69"
(17.53mm)
2900SL Socket/Female 1/4 1/8 1/8-27 NPTF Brass 2.00(50.80) 1.19(30.23) 0.69(17.53)
3100E Socket/Female 1/4" 1/4" 1/4-18 Male NPTF Brass 1 2.19"
(55.63mm)		 1.19"
(30.23mm)		 0.69"
(17.53mm)
3300E Socket/Female 1/4" 3/8" 3/8-18 Male NPTF Brass 1 2.15"
(54.61mm)		 1.19"
(30.23mm)		 0.69"
(17.53mm)
3000 Series | Plugs
Part Number Coupling Type Body Size Port Size Thread Material Figure Dimensions
C D Hex
10 Plug/Male 1/4" 1/4" 1/4-18 Male NPTF Steel 2 1.75"
(44.45mm)		 0.62"
(15.75mm)		 0.56"
(14.22mm)
10C** Plug/Male 1/4" 1/4" 1/4-18 Male NPTF Steel 2 1.75"
(44.45mm)		 0.65"
(16.51mm)		 0.56"
(14.22mm)
10G*** Plug/Male 1/4" 1/4" 1/4-18 Male NPTF Steel 2 1.75"
(44.45mm)		 0.65"
(16.51mm)		 0.56"
(14.22mm)
12E Plug/Male 1/4" 1/8" 1/8-27 Male NPTF Steel 2 1.59"
(40.38mm)		 0.58"
(14.73mm)		 0.50"
(12.7mm)
12G*** Plug/Male 1/4" 1/8" 1/8-27 Male NPTF Steel 2 2.38"
(60.45mm)		 0.77"
(19.55mm)		 0.69"
(17.52mm)
14 Plug/Male 1/4" 3/8" 3/8-18 Male NPTF Brass 2 1.75"
(44.45mm)		 0.79"
(20.07mm)		 0.69"
(17.53mm)
14G*** Plug/Male 1/4" 3/8" 3/8-18 Male NPTF Steel 2 2.53"
(64.26mm)		 0.77"
(19.55mm)		 0.69"
(17.52mm)
B10 Plug/Male 1/4" 1/4" 1/4-18 Male NPTF Brass 2 1.75"
(44.45mm)		 0.62"
(16.25mm)		 0.56"
(14.22mm)
LL10 Plug/Male 1/4" 1/4" 1/4-18 Male NPTF Stainless Steel 2 1.75"
(44.45mm)		 0.62"
(16.51mm)		 0.56"
(14.22mm)
10NK Plug/Male 1/4 " 1/4" 1/4-18 Male NPTF Nickel Plated Steel 2 1.75"
(44.45mm)		 0.62"
(15.75mm)		 0.56"
(14.22mm)

**With Ball Check
***With Bleeder Ball Check - Reduces Hose Whip
