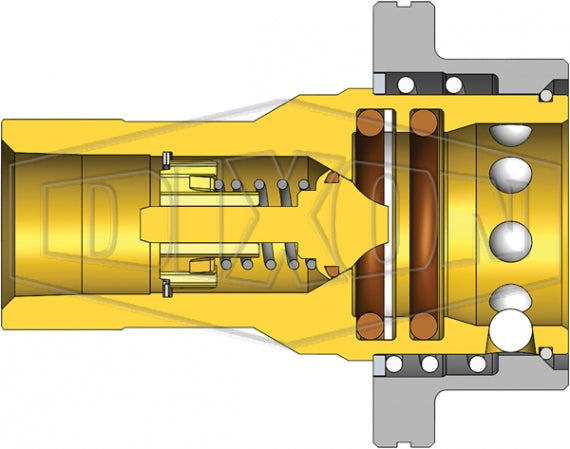

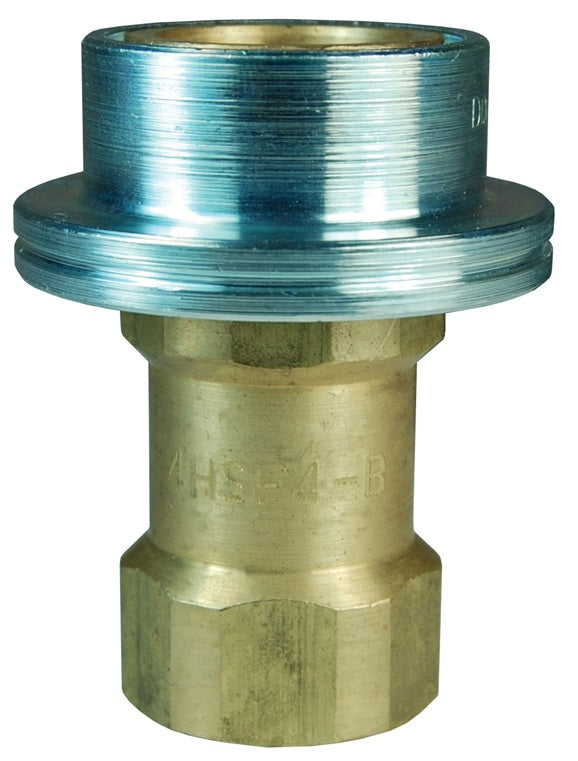

Hydraulic Coupling: HS-Series ISO-B Steam Interchange Coupler (Female Threads)

Designed exclusively for steam applications.

Quantity

Specifications for Variant SKU: 2HSF2-B Dixon
Series:	HS-Series
Shape (Orientation):	Straight
Ends Configuration:	1/4in Female ISO-B QD Interchange, 1/4in Female NPTF
Material(s):	Brass, Steel
Seal Material(s):	EPDM

Compatibility & Interchange:	Interchangeable to ISO7241 Series 'B' Parker 60-Series Steam Couplings
Construction:	Machined components are manufactured using solid steel, brass, or 303 stainless steel bar stock. Stainless steel balls, retaining rings, and springs maximize corrosion resistance and extend service life. Steel componentry is plated using ROHS-compliant trivalent chrome. Steel plugs are hardened to provide heavy-duty performance and resist brinelling. All couplers have a steel steam-sleeve as standard.
Seal Components:	EPDM steam-grade seals are standard, providing a temperature range of -70°F to 400°F (-57°C to 204°C). Couplers have a redundant O-ring sealing system (dual O-rings with PTFE back-up). Valve seals are crimped in place to maintain integrity during excessive flow conditions.
Note:	Maximum working pressure has been calculated using saturated steam at 382°F (194°C) for general purpose continuous steam service. WARNING: Do not disconnect steam couplings while under pressure. Maximum operating temperature for steam service couplings is 382°F (194°C), with an intermittent maximum temperature of 400°F (204°C). Be sure to use safety chains, or equivalent means, to prevent the line from thrashing around in a case where the coupling becomes disconnected.
Additional Information:	For a selection guide, cross reference tables, safety info, fluid compatibility, and other general info, please see: Dixon Valve Quick Disconnect Guide.PDF

Rated Pressure Chart
Body Size	Brass Coupler/Plug				Brass Coupler/Steel Plug				Brass Coupler/303 SS Plug				303 SS Coupler/Plug
Body Size	Maximum Working		Burst		Maximum Working		Burst		Maximum Working		Burst		Maximum Working		Burst
1/4"	200 PSI	14 Bar	14,500 PSI	1,000 Bar	200 PSI	14 Bar	14,500 PSI	1,000 Bar	200 PSI	14 Bar	14,500 PSI	1,000 Bar	200 PSI	14 Bar	31,500 PSI	2,150 Bar
3/8"	200 PSI	14 Bar	12,000 PSI	800 Bar	200 PSI	14 Bar	14,500 PSI	1,000 Bar	200 PSI	14 Bar	14,500 PSI	1,000 Bar	200 PSI	14 Bar	26,500 PSI	1,800 Bar
1/2"	200 PSI	14 Bar	11,500 PSI	750 Bar	200 PSI	14 Bar	14,500 PSI	1,000 Bar	200 PSI	14 Bar	14,500 PSI	1,000 Bar	200 PSI	14 Bar	27,500 PSI	1,900 Bar
3/4"	200 PSI	14 Bar	9,280 PSI	640 Bar	200 PSI	14 Bar	9,280 PSI	640 Bar	200 PSI	14 Bar	9,280 PSI	640 Bar	200 PSI	14 Bar	16,000 PSI	1,100 Bar
1"	200 PSI	14 Bar	5,800 PSI	400 Bar	200 PSI	14 Bar	5,800 PSI	400 Bar	200 PSI	14 Bar	5,800 PSI	400 Bar	200 PSI	14 Bar	15,000 PSI	1,000 Bar

HS-Series \| ISO-B Steam Interchange Coupler (Female Threads)

Part Number	Coupling Type	Body Size	Threads	Material	Length	Maximum OD	Hex
2HSF2-B	Socket/Female	1/4"	1/4" - 18 Female NPTF	Brass	2.26" (57.4mm)	1.42" (36.1mm)	3/4"
2HSF2-S	Socket/Female	1/4"	1/4" - 18 Female NPTF	303 Stainless	2.26" (57.4mm)	1.42" (36.1mm)	3/4"
2HSBF2-B	Socket/Female	1/4"	1/4" - 19 Female BSPP	Brass	2.26" (57.4mm)	1.42" (36.1mm)	3/4"
2HSBF2-S	Socket/Female	1/4"	1/4" - 19 Female BSPP	303 Stainless	2.26" (57.4mm)	1.42" (36.1mm)	3/4"
3HSF3-B	Socket/Female	3/8"	3/8" - 18 Female NPTF	Brass	2.51" (63.8mm)	1.73" (43.9mm)	7/8"
3HSF3-S	Socket/Female	3/8"	3/8" - 18 Female NPTF	303 Stainless	2.51" (63.8mm)	1.73" (43.9mm)	7/8"
3HSBF2-B	Socket/Female	3/8"	3/8" - 19 Female BSPP	Brass	2.51" (63.8mm)	1.73" (43.9mm)	7/8"
3HSBF3-S	Socket/Female	3/8"	3/8" - 19 Female BSPP	303 Stainless	2.51" (63.8mm)	1.73" (43.9mm)	7/8"
4HSF4-B	Socket/Female	1/2"	1/2" - 14 Female NPTF	Brass	2.86" (72.6mm)	2.29" (58.2mm)	1-1/16"
4HSF4-S	Socket/Female	1/2"	1/2" - 14 Female NPTF	303 Stainless	2.86" (72.6mm)	2.29" (58.2mm)	1-1/16"
4HSBF4-B	Socket/Female	1/2"	1/2" - 14 Female BSPP	Brass	2.86" (72.6mm)	2.29" (58.2mm)	1-1/16"
4HSBF4-S	Socket/Female	1/2"	1/2" - 14 Female BSPP	303 stainless	2.86" (72.6mm)	2.29" (58.2mm)	1-1/16"
6HSF6-B	Socket/Female	3/4"	3/4" - 14 Female NPTF	Brass	3.55" (90.2mm)	2.61" (66.3mm)	1-5/16"
6HSF6-S	Socket/Female	3/4"	3/4" - 14 Female NPTF	303 Stainless	3.55" (90.2mm)	2.61" (66.3mm)	1-5/16"
6HSBF6-B	Socket/Female	3/4"	3/4" - 14 Female BSPP	Brass	3.55" (90.2mm)	2.61" (66.3mm)	1-5/16"
6HSBF6-S	Socket/Female	3/4"	3/4" - 14 Female BSPP	303 Stainless	3.55" (90.2mm)	2.61" (66.3mm)	1-5/16"
8HSF8-B	Socket/Female	1"	1" - 11-1/2 Female NPTF	Brass	4.13" (104.9mm)	2.98" (75.7mm)	1-5/8"
8HSF8-S	Socket/Female	1"	1" - 11-1/2 Female NPTF	303 Stainless	4.13" (104.9mm)	2.98" (75.7mm)	1-5/8"
8HSBF8-B	Socket/Female	1"	1" - 11 Female BSPP	Brass	4.13" (104.9mm)	2.98" (75.7mm)	1-5/8"
8HSBF8-S	Socket/Female	1"	1" - 11 Female BSPP	303 Stainless	4.13" (104.9mm)	2.98" (75.7mm)	1-5/8"

HS-Series \| ISO-B Steam Interchange Plug (Female Threads)

Part Number	Coupling Type	Body Size	Threads	Material	Length	Max. OD	Hex
HS2F2	Plug/Male	1/4"	1/4" - 18 Female NPTF	Steel	1.55" (39.4mm)	0.83" (21.1mm)	3/4"
HS2F2-B	Plug/Male	1/4"	1/4" - 18 Female NPTF	Brass	1.55" (39.4mm)	0.83" (21.1mm)	3/4"
HS2F2-S	Plug/Male	1/4"	1/4" - 18 Female NPTF	303 Stainless	1.55" (39.4mm)	0.83" (21.1mm)	3/4"
HS2BF2	Plug/Male	1/4"	1/4" - 19 Female BSPP	Steel	1.55" (39.4mm)	0.83" (21.1mm)	3/4"
HS2BF2-B	Plug/Male	1/4"	1/4" - 19 Female BSPP	Brass	1.55" (39.4mm)	0.83" (21.1mm)	3/4"
HS2BF2-S	Plug/Male	1/4"	1/4" - 19 Female BSPP	303 Stainless	1.55" (39.4mm)	0.83" (21.1mm)	3/4"
HS3F3	Plug/Male	3/8"	3/8" - 18 Female NPTF	Steel	1.70" (43.2mm)	0.97" (24.6mm)	7/8"
HS3F3-B	Plug/Male	3/8"	3/8" - 18 Female NPTF	Brass	1.70" (43.2mm)	0.97" (24.6mm)	7/8"
HS3F3-S	Plug/Male	3/8"	3/8" - 18 Female NPTF	303 Stainless	1.70" (43.2mm)	0.97" (24.6mm)	7/8"
HS3BF3	Plug/Male	3/8"	3/8" - 19 Female BSPP	Steel	1.70" (43.2mm)	0.97" (24.6mm)	7/8"
HS3BF3-B	Plug/Male	3/8"	3/8" - 19 Female BSPP	Brass	1.70" (43.2mm)	0.97" (24.6mm)	7/8"
HS3BF3-S	Plug/Male	3/8"	3/8" - 19 Female BSPP	303 Stainless	1.70" (43.2mm)	0.97" (24.6mm)	7/8"
HS4F4	Plug/Male	1/2"	1/2" - 14 Female NPTF	Steel	1.94" (49.3mm)	1.17" (29.7mm)	1-1/16"
HS4F4-B	Plug/Male	1/2"	1/2" - 14 Female NPTF	Brass	1.94" (49.3mm)	1.17" (29.7mm)	1-1/16"
HS4F4-S	Plug/Male	1/2"	1/2" - 14 Female NPTF	303 Stainless	1.94" (49.3mm)	1.17" (29.7mm)	1-1/16"
HS4BF4	Plug/Male	1/2"	1/2" - 14 Female BSPP	Steel	1.94" (49.3mm)	1.17" (29.7mm)	1-1/16"
HS4BF4-B	Plug/Male	1/2"	1/2" - 14 Female BSPP	Brass	1.94" (49.3mm)	1.17" (29.7mm)	1-1/16"
HS4BF4-S	Plug/Male	1/2"	1/2" - 14 Female BSPP	303 Stainless	1.94" (49.3mm)	1.17" (29.7mm)	1-1/16"
HS6F6	Plug/Male	3/4"	3/4" - 14 Female NPTF	Steel	2.41" (61.2mm)	1.44" (36.6mm)	1-5/16"
HS6F6-B	Plug/Male	3/4"	3/4" - 14 Female NPTF	Brass	2.41" (61.2mm)	1.44" (36.6mm)	1-5/16"
HS6F6-S	Plug/Male	3/4"	3/4" - 14 Female NPTF	303 Stainless	2.41" (61.2mm)	1.44" (36.6mm)	1-5/16"
HS6BF6	Plug/Male	3/4"	3/4" - 14 Female BSPP	Steel	2.41" (61.2mm)	1.44" (36.6mm)	1-5/16"
HS6BF6-B	Plug/Male	3/4"	3/4" - 14 Female BSPP	Brass	2.41" (61.2mm)	1.44" (36.6mm)	1-5/16"
HS6BF6-S	Plug/Male	3/4"	3/4" - 14 Female BSPP	303 Stainless	2.41" (61.2mm)	1.44" (36.6mm)	1-5/16"
HS8F8	Plug/Male	1"	1" - 11-1/2 Female NPTF	Steel	2.87" (72.9mm)	1.79" (45.5mm)	1-5/8"
HS8F8-B	Plug/Male	1"	1" - 11-1/2 Female NPTF	Brass	2.87" (72.9mm)	1.79" (45.5mm)	1-5/8"
HS8F8-S	Plug/Male	1"	1" - 11-1/2 Female NPTF	303 Stainless	2.87" (72.9mm)	1.79" (45.5mm)	1-5/8"
HS8BF8	Plug/Male	1"	1" - 11 Female BSPP	Steel	2.87" (72.9mm)	1.79" (45.5mm)	1-5/8"
HS8BF8-B	Plug/Male	1"	1" - 11 Female BSPP	Brass	2.87" (72.9mm)	1.79" (45.5mm)	1-5/8"
HS8BF8-S	Plug/Male	1"	1" - 11 Female BSPP	303 Stainless	2.87" (72.9mm)	1.79" (45.5mm)	1-5/8"
