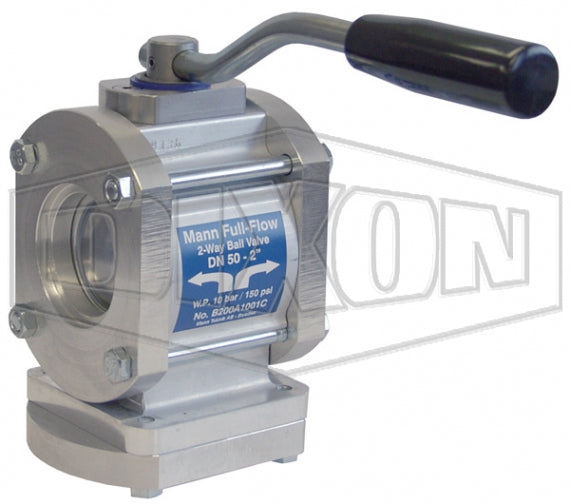

2WAYBV200 by Dixon Valve MannTek | Full Flow Ball Valve | Two-Way | 2" Female NPT x 2" Female NPT | Aluminum

Name: 2WAYBV200 by Dixon Valve MannTek | Full Flow Ball Valve | Two-Way | 2" Female NPT x 2" Female NPT | Aluminum
Brand: Dixon
SKU: 2WAYBV200 Dixon
Price: 632.56 USD
Availability: InStock

Save $79.07

$711.63

$711.63 - $711.63

$711.63

$632.56

$632.56 - $632.56

$632.56

Dixon Valve & Coupling
MannTek Full Flow Ball Valve | Two-Way | Aluminum

Commonly used for switching compartments or tanks.

Quantity

Specifications for Variant SKU: 2WAYBV200 Dixon
Brand:	MannTek
Shape (Orientation):	Straight
Ends Configuration:	2in Female NPT, 2in Female NPT, Some Ends Match
Material(s):	Aluminum
Seal Material(s):	FKM

Features:
High flow rate; low pressure drop. Spindle can be disassembled even when ball valve is installed. Three ports - one inlet and two outlets, valve directs the flow from the inlet to either of the two outlets.
Materials:
Wetted parts are aluminum and stainless steel. FPM seals.
Specifications:
Working pressure: 150 PSI at ambient temperature 70°F (21°C). Standard valve ports - female NPT, socket weld for Schedule 40 pipe and grooved.

Part Number	End Type	Size	Bore
2WAYBV200	Female NPT x Female NPT	2"	-
2WAYBV200-SH*	Female NPT x Female NPT	2"	-
2WAYBV300	Female NPT x Female NPT	3"	-

2WAYBV200SW	Socket Weld End x Socket Weld End	2"	2.390"
2WAYBV300SW	Socket Weld End x Socket Weld End	3"	3.530"

2WAYBV200VIC3	Grooved End x Grooved End	2"	-
2WAYBV300VIC3	Grooved End x Grooved End	3"	-

* Supplied with straight handle

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
