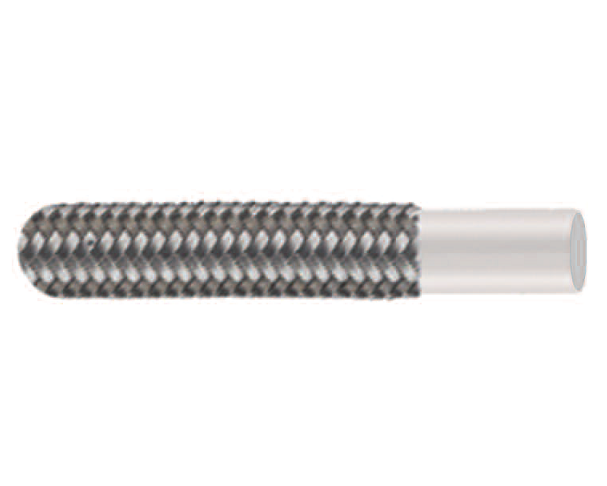

3/4" TR14 Couplamatic PTFE Hydraulic Hose - One Stainless Braid - 3/4" ID - Bulk

3/4" TR14 by Couplamatic | PTFE Hydraulic Hose | One Stainless Braid | 3/4" ID | 50ft Bulk Length

Save $45.67

$411.00

$411.00 - $411.00

$411.00

$365.33

$365.33 - $365.33

$365.33

Couplamatic Systems Inc.
One (3/16"-3/4") or Two (1") Stainless Braids - TR14 PTFE Hydraulic Hose - SAE 100R14

Quantity

Specifications for Variant SKU: 3/4" TR14 Couplamatic \| 50 \|
Series:	TR14 Series
Hose Color(s):	Metallic
Dash Size:	-12
Internal Diameter:	0.75in
Outer Diameter:	0.886in
Cover Construction:	304 Stainless Steel
Applicable Specs & Approvals:	SAE 100R14
Compatible with the following Series:	T Series

Applications:	Fuel, Lubricant, Steam, Hydraulic, & Compressed Gas	SAE Rating:	SAE 100R14
Cover:	304 Stainless Braid	Reinforcement:	One (3/16"-3/4") or Two (1") Stainless Braids
Temperature:	-65F to +400F (-54C to +204C), -100F to +500F (-73C to +260 C) Intermittent	Compatible Coupling Series:

Part Number	Hose ID	Hose OD	Working Pressure (lbs)	Min. Burst Pressure (lbs)	Min. Bend Radius	Weight per 100ft	Coil Footage
3/16" TR14	3/16"	0.312"	3,000 lbs.	12,000 lbs.	2.0"	5 lbs.	Bulk
1/4" TR14	1/4"	0.375"	3,000 lbs.	12,000 lbs.	3.0"	7 lbs.	Bulk
5/16" TR14	5/16"	0.445"	2,500 lbs.	10,000 lbs.	4.0"	11 lbs.	Bulk
3/8" TR14	3/8"	0.503"	2,250 lbs.	9,000 lbs.	4.5"	12 lbs.	Bulk
1/2" TR14	1/2"	0.648"	1,500 lbs.	6,000 lbs.	6.5"	15 lbs.	Bulk
3/4" TR14	3/4"	0.886"	1,100 lbs.	4,400 lbs.	8.2"	20 lbs.	Bulk
1" TR14	1"	1.135"	900 lbs.	3,600 lbs.	10.0"	30 lbs.	Bulk

Working pressure and Burst Pressure rated at room temperature.

Couplamatic Systems Inc

In the business for over 50 years, we're here to bring you the highest quality, most rigorously tested, American made hydraulic components on the market. We utilize state-of-the-art facilities and equipment to produce industry leading, quality hydraulic products. When you buy Couplamatic System Inc. products, you are buying precision and reliability.
