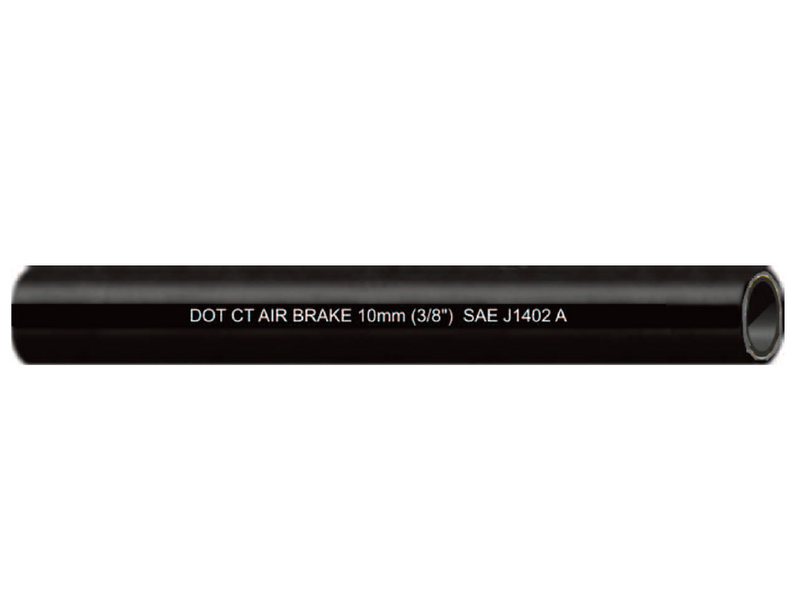

3/8" J1402A Couplamatic Type A Dot FMVSS 106 Air Brake Hose - 4 Spiral Polyester (SAE J1402) - 3/8" ID - 500ft

3/8" J1402A by Couplamatic | Type A Dot FMVSS 106 | Air Brake Hose | 4 Spiral Polyester | SAE J1402 | 3/8" ID | 500ft

Save $6.66 Save $6.66
$733.33
$733.33 - $733.33
$733.33
$726.67
$726.67 - $726.67
$726.67

Couplamatic Systems Inc.
4 Spiral Polyester - J1402A Air Brake Hose TYPE A DOT FMVSS 106 - SAE J1402

Package Quantity: 500 FT

Specifications for Variant SKU: 3/8" J1402A Couplamatic | 500 |
Series: J1402A Series
Hose Color(s): Black
Internal Diameter: 0.375in
Outer Diameter: 0.75in
Applicable Specs & Approvals: SAE J1402
Applications: Air Brake SAE Rating: SAE J1402 TYPE A DOT FMVSS 106
Cover: Rubber Reinforcement: 4 Spiral Polyester
Temperature: -40 to +200F (-40 to +96C)
Part Number Hose ID Hose OD Working Pressure
(lbs)		 Min. Burst Pressure
(lbs)		 Min. Bend Radius Weight per 100ft Reel Footage
3/8" J1402A 3/8" 0.750" 225 lbs. 900 lbs. 3.5" 20 lbs. 500ft

*Cut lengths available. 100' minimum*

Couplamatic Systems Inc

Couplamatic Systems Inc

In the business for over 50 years, we're here to bring you the highest quality, most rigorously tested, American made hydraulic components on the market. We utilize state-of-the-art facilities and equipment to produce industry leading, quality hydraulic products. When you buy Couplamatic System Inc. products, you are buying precision and reliability.
