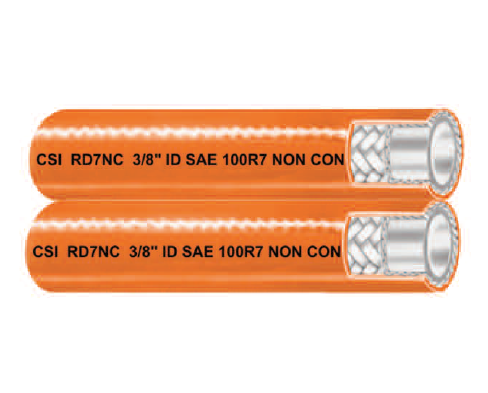

3/8" RD7TLNC Couplamatic Non-Conductive Twin Line Thermoplastic Hydraulic Hose (Reduced OD) - Polyester Braid (SAE 100R7) - 3/8" ID - 250ft

3/8" RD7TLNC by Couplamatic | Non-Conductive Twin Line Thermoplastic Hydraulic Hose | Reduced OD | Polyester Braid | SAE 100R7 | 3/8" ID | 250ft

Save $131.67 Save $131.67
$1,316.67
$1,316.67 - $1,316.67
$1,316.67
$1,185.00
$1,185.00 - $1,185.00
$1,185.00

Couplamatic Systems Inc.
Polyester Braid - RD7TLNC Non-Conductive Twin Line Thermoplastic Hydraulic Hose (Reduced OD) - (SAE 100R7)

Package Quantity: 250 FT

Specifications for Variant SKU: 3/8" RD7TLNC Couplamatic | 250 |
Series: RD7TLNC Series
Hose Color(s): Orange
Dash Size: -6
Internal Diameter: 0.375in
Outer Diameter: 0.618in
Tubing Construction: Nylon
Cover Construction: Polyurethane
Applicable Specs & Approvals: ANSI/SAIA A92.2, SAE 100R7
Compatible with the following Series: T Series
Applications: Medium Pressure Hydraulics, Industrial or Agricultural SAE Rating: SAE 100R7
Cover: Orange Non-Conductive Polyurethane, ANSI 92.2, Non-Perforated Tube: Nylon
Reinforcement: Polyester Braid Temperature: -40F to +212F (-40C to +100C)
Part Number Hose ID Hose OD Working Pressure
(lbs)		 Min. Burst Pressure
(lbs)		 Min. Bend Radius Weight per 100ft Coil Footage
1/4" RD7TLNC 1/4" 0.455" 2,750 lbs. 11,000 lbs. 1.5" 10 lbs. 250ft
3/8" RD7TLNC 3/8" 0.618" 2,250 lbs. 9,000 lbs. 2" 21 lbs. 250ft

*Cut lengths available in multiples of 50'*
