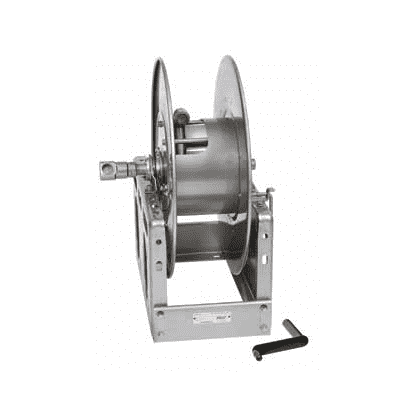

3016-25-26 by Hannay | #10-16 | 3000 Series | Manual Rewind Reel
3016-25-26 by Hannay | #10-16 | 3000 Series | Manual Rewind Reel

3016-25-26 by Hannay | #10-16 | 3000 Series | Manual Rewind Reel

Save $491.55 Save $491.55
$1,228.88
$1,228.88 - $1,228.88
$1,228.88
$737.33
$737.33 - $737.33
$737.33



3000 Manual Rewind Reels To handle 3/4" or 1" I.D. hose.
Specifications for Variant SKU: 3016-25-26 Hannay
Series: 3000 Series
Applications:
  • Fuel Dispensing
  • Spray Operations
  • Fire Protection
Features:
  • Economical manual rewind reels for long lengths of hose.
  • Choose disc rewind or removable direct crank rewind.
  • Supplied with spring-actuated pin lock.
  • Standard inlet 90 deg. ball bearing swivel joint 1" female NPT threads.
  • Standard outlet 1" female NPT thread.
  • Pressures to 2000 psi (138 bar).
  • Temperatures from -60 deg. F to +250 deg. F (-51 deg. C to +121 deg. C).
  • NOTICE: A Flexible Connector must be used between the inlet pipe and the inlet swivel joint.

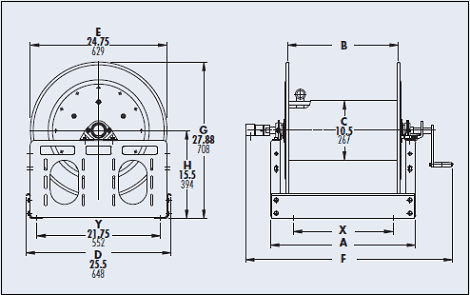

Model Number Hose Capacity of Reel (Ft.) Approx. Weight (Lbs.) Reel Dimensions (In.)
I.D. (in) 3/4" 1" 1" Collapsible Hose
O.D. (in) 1-9/32" 1-9/16" 1/2" x 1-3/4" Collapsible Hose A B F X
3016-25-26 100' length 50' length 200' length 85 lbs. 13" 7.5" 23.75" 7.75"
3020-25-26 150' length 100' length 300' length 94 lbs. 17" 11.5" 27.75" 9"
3024-25-26 250' length 150' length 400' length 103 lbs. 21" 15.5" 31.75" 13"
3028-25-26 300' length 200' length 550' length 113 lbs. 25.5" 20" 36.25" 17.5"

Hannay Reels

Hannay Reels is the leading manufacturer of durable hose and cable reels for both OEM and aftermarket applications, offering thousands of standard models along with a wide range of custom design capabilities. Hannay’s superior manufacturing techniques, consistent quality, outstanding service and unmatched value result in the most dependable, best-engineered reels in the business.
