3028-25-26 by Hannay | #10-28 | 3000 Series | Manual Rewind Reel

Name: 3028-25-26 by Hannay | #10-28 | 3000 Series | Manual Rewind Reel
Brand: Hannay
SKU: 3028-25-26 Hannay
Price: 737.33 USD
Availability: InStock

Save $24.89

$762.22

$762.22 - $762.22

$762.22

$737.33

$737.33 - $737.33

$737.33

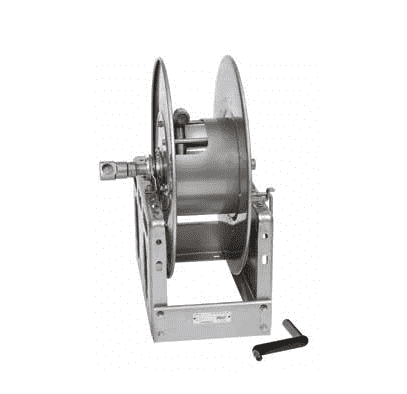

3000 Manual Rewind Reels To handle 3/4" or 1" I.D. hose.

Quantity

Specifications for Variant SKU: 3028-25-26 Hannay
Series:	3000 Series

Applications:
Fuel Dispensing Spray Operations Fire Protection
Features:
Economical manual rewind reels for long lengths of hose. Choose disc rewind or removable direct crank rewind. Supplied with spring-actuated pin lock. Standard inlet 90 deg. ball bearing swivel joint 1" female NPT threads. Standard outlet 1" female NPT thread. Pressures to 2000 psi (138 bar). Temperatures from -60 deg. F to +250 deg. F (-51 deg. C to +121 deg. C). NOTICE: A Flexible Connector must be used between the inlet pipe and the inlet swivel joint.

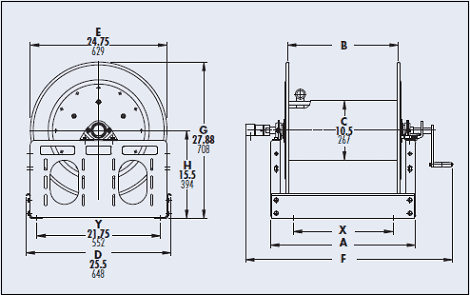

Model Number	Hose Capacity of Reel (Ft.)				Approx. Weight (Lbs.)	Reel Dimensions (In.)
	I.D. (in)	3/4"	1"	1" Collapsible Hose
	O.D. (in)	1-9/32"	1-9/16"	1/2" x 1-3/4" Collapsible Hose		A	B	F	X
3016-25-26		100' length	50' length	200' length	85 lbs.	13"	7.5"	23.75"	7.75"
3020-25-26		150' length	100' length	300' length	94 lbs.	17"	11.5"	27.75"	9"
3024-25-26		250' length	150' length	400' length	103 lbs.	21"	15.5"	31.75"	13"
3028-25-26		300' length	200' length	550' length	113 lbs.	25.5"	20"	36.25"	17.5"
