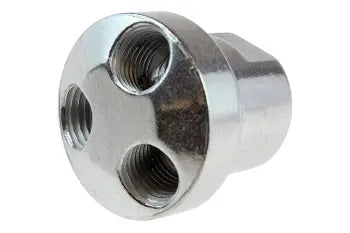

3002 by Coilhose | Tri-Pod Manifold | 3 Port | 1/4" Female NPT Thread Inlet x 1/4" Female NPT Thread Outlet | Aluminum

3002 by Coilhose | Tri-Pod Manifold | 3 Port | 1/4" Female NPT Thread Inlet x 1/4" Female NPT Thread Outlet | Aluminum

Save $1.41 Save $1.41
$12.66
$12.66 - $12.66
$12.66
$11.25
$11.25 - $11.25
$11.25
Coilhose Pneumatics - Multiple Connection Manifolds
Specifications for Variant SKU: 3002 Coilhose
Material(s): Aluminum
Applications:
  • Pneumatic outlets.
  • Control panel junction points.
  • Multiple branching for remote lines.
  • Coolant distributions.
  • Distributing air supply to maximum workstations.

Model Description
Straight Manifold: Front-to-back and top-to-bottom mounting holes provide convenient positioning alternatives to fit any application. Made from anodized aluminum. Available with four or six 1/4" FPT outlet ports and two 3/8" FPT connection ports. Constructed of anodized aluminum, this manifold is equipped with screw mounting holes and has a "flow through" configuration.
3043 4 Port - 3/8" FPT Inlet x 1/4" FPT Outlet
3063 6 Port - 3/8" FPT Inlet x 1/4" FPT Outlet
Tee Manifold: The Tee Manifold is made from high quality brass and is ideal for two-way distribution. Made in USA
T002 1/8" FPT
T004 1/4" FPT
T006 3/8" FPT
T008 1/2" FPT
Tri-Pod Manifold: This aluminum manifold is equipped with a single inlet, and three outlet fittings. The Tri-Pod manifold is also referred to as a "shower head manifold." For high-volume applications.
3002 3 Port - 1/4" FPT Inlet x 1/4" FPT Outlet
3003 3 Port - 3/8" FPT Inlet x 1/4" FPT Outlet
Flat Hex Manifold: This high quality brass construction manifold was designed with a "low profile" to be set on the ground while safely distributing three hose lines to the work area. For installations where space is limited or the assembly is required to lay low, the flat hex manifold is perfect. Constructed of brass and equipped with a single mounting hole, the flat hex can be nailed to a roof or joist during construction.
3122 1/4" FPT Inlet x 1/4" FPT Outlet
3132 3/8" FPT Inlet x 1/4" FPT Outlet
3133 3/8" FPT Inlet x 3/8" FPT Outlet
Cross Manifold: The Cross Manifold is made from high quality brass and is suitable for three-way right angle distribution.
X002 1/8" FPT
X004 1/4" FPT
X006 3/8" FPT
X008 1/2" FPT
Low Profile Manifold: Features a compact, space-saving design. Made of lightweight black anodized aluminum. Available with three or five 1/4" FPT output ports. Both sizes have a 1/4" FPT supply port. Accepts 1/4" and 3/8" body size quick disconnects.
3032 3 Port - 1/4" FPT Inlet x 1/4" FPT Outlet
3052 5 Port - 1/4" FPT Inlet x 1/4" FPT Outlet
High Flow Manifold: This manifold is made of lightweight aluminum and has generously sized 1/2" FPT supply ports, which provide high air flow for heavy-duty applications. Additionally, pre-drilled mounting holes enable stationary installation. Available with three or five 1/4" FPT output ports. Accepts 1/4" and 3/8" body size quick disconnects. This manifold is ideal for permanent installations in automotive or industrial settings.
3034 3 Port - 1/2" FPT Inlet x 1/4" FPT Outlet
3054 5 Port - 1/2" FPT Inlet x 1/4" FPT Outlet
Swivel Manifold: This manifold has ports which rotate 360° for multi-directional connections. Chrome-plated brass provides superior corrosion resistance. Available with two or three 1/4" MPT output ports. Both sizes have one 1/4" MPT supply port. Accepts 1/4" quick disconnects.
3022S 2 Port - 1/4" FPT Inlet x 1/4" FPT Outlet
3032S 3 Port - 1/4" FPT Inlet x 1/4" FPT Outlet
