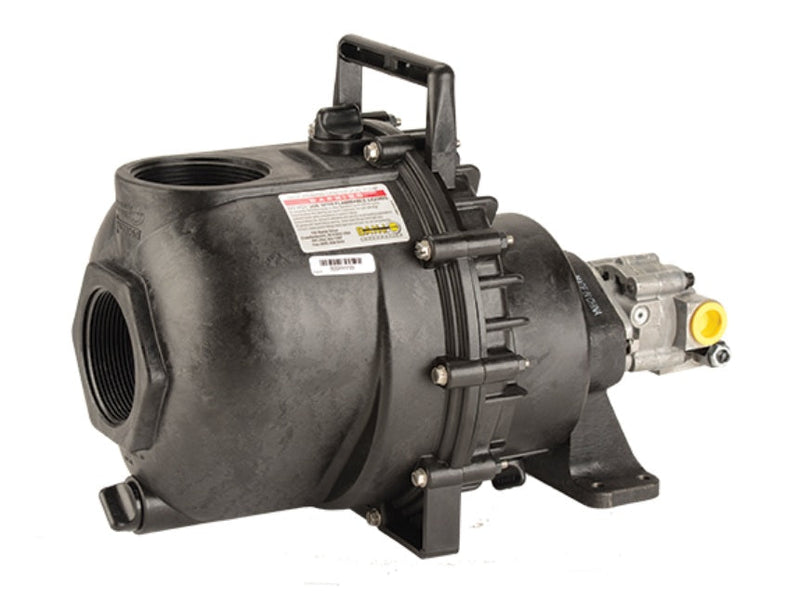

300PHY by Banjo | 3" Pump with 12 HP Hydraulic Motor | Polypropylene

300PHY by Banjo | 3" Pump with 12 HP Hydraulic Motor | Polypropylene

Save $135.75 Save $135.75
$1,221.75
$1,221.75 - $1,221.75
$1,221.75
$1,086.00
$1,086.00 - $1,086.00
$1,086.00

Banjo® Liquid Handling Products Self-Priming Centrifugal Pumps
3" Polypropylene Pumps with Hydraulic Motors & Replacement Parts
Specifications for Variant SKU: 300PHY Banjo
Material(s): Polypropylene

SPECIFICATIONS

Application: Fluids, Agriculture, Industrial
Hydraulic Motor Data:
U.S. Gallons/Rev. 0.0025 Cubic Inches/Rev. 0.580
Liters/Rev. 0.0097 Max Hydraulic Pressure 2000 PSI
Min Hydraulic Pressure 200 PSI Inlet Port SAE 10 (7/8-14 UNF-2B)
Outlet Port SAE 10 (7/8-14 UNF-2B) Minimum GPM Required 6 GPM 2400 RPM
Maximum GPM Required 10 GPM 4000 RPM Ideal GPM Required 9 GPM 3600 RPM
Connection Information
Inlet "A" Port Outlet "B" Port
Supplied check valve is to ensure proper rotation of the Banjo pump. Place check valve in outlet port (marked "B") for proper right hand rotation.
Spool Valve Information
Required Outlet Flow Min 6 GPM / Max 10 GPM Required System Pressure Min 600 PSI / Max 3000 PSI
Pump Features:
  • Precision molded construction
  • Lightweight
  • Corrosion resistant
  • Superior design
  • Low maintenance
Notes:
  • CAUTION-WARNING: Please do not run pump dry, restrict or reduce port sizes, or dead head pump. This could cause component failure to pump.
  • DO NOT USE WITH FLAMMABLE LIQUIDS.
  • Recommendation: Banjo recommends using the motor spool control valve or a suitable equivalent. The lack of such a valve in this circuit may cause failure to the hydraulic motor.
Part Number Description Horsepower FKM Repair Kit Number EPDM Seal Kit Number FKM Seal Kit Number Hydraulic Motor Seal Kit Number
3" Poly Pumps with Hydraulic Motors
300PHY 3" Poly Pump with 12 HP Hydraulic Motor 12 HP 13999 13999V HY1013 ---
300PHYW 3" Poly Wet Seal Pump with 12 HP Hydraulic Motor 12 HP N/A N/A N/A N/A (Made to Order)
Hydraulic Motor Spool Valve
HSV1000 Hydraulic Motor Spool Valve N/A N/A N/A N/A N/A ---
Replacement Parts for 3" Poly Pumps
Item Part Number Description
14 12703A Rear Bracket
20 13702 Volute
3 13712 Body Assembly
Not Shown 12099 7/16"-14 x 1.25" HHCS
N/A 13999 Pump Seal/O-Ring Kit (Items 2,4,7-8,16,18,19, 21, 30, 12099)
N/A 13999V FKM(viton type) Pump Seal/O-Ring Kit (Items 2,4,7-8,16, 18,19, 21, 30, 12099)
N/A HY1013 Hydraulic Motor Seal Kit
Banjo

Banjo

Banjo is a world-class producer of a wide range of mechanical and electrical valves, fittings, and self-priming centrifugal pumps for agriculture and numerous industrial applications that ship to every corner of the globe. Banjo employs an array of molding presses, numerous machining and assembly cells, and an optimized logistics system empowering our production and shipping operations.
