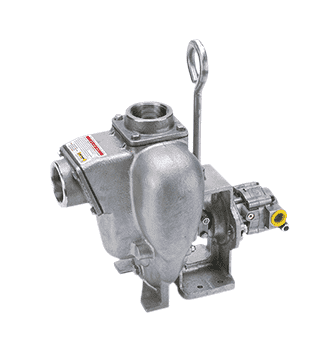

300PHYSS Banjo 3" Stainless Steel Pump with 21 HP Hydraulic Motor

300PHYSS by Banjo | Centrifugal Pumps | 3" Pump with 21 HP Hydraulic Motor | Min. 600 PSI, Max. 3000 PSI | Stainless Steel

Save $797.02 Save $797.02
$7,173.17
$7,173.17 - $7,173.17
$7,173.17
$6,376.15
$6,376.15 - $6,376.15
$6,376.15

Banjo Self-Priming Centrifugal Pumps
3" Stainless Steel Pumps with Hydraulic Motors & Replacement Parts

FREE SHIPPING DOMESTICALLY!
Specifications for Variant SKU: 300PHYSS Banjo
Application: Fluids, Agriculture, Industrial
Hydraulic Motor Data:
U.S. Gallons/Rev. 0.0038 Cubic Inches/Rev. 0.878
Liters/Rev. 0.0144 Max Hydraulic Pressure 3000 PSI
Min Hydraulic Pressure 600 PSI Inlet Port 1-1/16-12UN-2B
Outlet Port 1-5/16-12UN-2B Minimum GPM Required 9 GPM 2370 RPM
Maximum GPM Required 13 GPM 3450 RPM Ideal GPM Required 9 GPM 3600 RPM
Connection Information
Inlet "A" Port Outlet "B" Port
Supplied check valve is to ensure proper rotation of the Banjo pump. Place check valve in outlet port (marked "B") for proper right hand rotation. It is recommended that a minimum 3/4" inlet line & a minimum 1" outlet line be used. The outlet port must be connected directly back to the hydraulic fluid reservoir & not to any valving, regulators or flow diverters. The outlet port/return line back pressure must not exceed 250 PSI.
Spool Valve Information
Required Outlet Flow Min 9 GPM / Max 13 GPM Required System Pressure Min 600 PSI / Max 3000 PSI
Pump Features:
  • Rugged construction for dependable service
  • Carbon ceramic seal with stainless steel cup and spring with FKM (viton type) rubber
  • Replaceable inlet and outlet flanges
  • Dynamically balanced impeller
Hydraulic Motor Features:
  • Hydraulic fluid capacity: Minimum 9 Gallons / Maximum 13 Gallons
  • 21 H.P. Motor
  • Open or closed system
  • Minimum 600 P.S.I. / Maximum 3000 P.S.I.
Notes:
  • CAUTION-WARNING: Please do not run pumps dry, restrict or reduce port sizes or dead head pumps. This could cause component failure to pump.
  • DO NOT USE WITH FLAMMABLE LIQUIDS.
  • Recommendation: Banjo recommends using the motor spool control valve or a suitable equivalent. The lack of such a valve in this circuit may cause failure to the hydraulic motor.
Part Number Description Horsepower
2" Stainless Steel Pumps with Hydraulic Motors
300PHYSS 3" Stainless Steel Pump with 21 HP Hydraulic Motor 21 HP (Made to Order)
Hydraulic Motor Spool Valve
HSV1000 Hydraulic Motor Spool Valve N/A ---
Replacement Parts for 2" Stainless Steel Hydraulic Pumps
Item Part Number Description Quantity Required
1 18001SS Pump Housing 1
2 18004SS Wear Plate 1
3 18106SS 3/8"-16 x 1.25" HHCS 2
4 18023SS Impeller & Drive Shaft 1
5 18025SS FKM (viton type) Mechanical Seal 1
6 18218 3/8"-16 x 24 x 2-1/8" SS Stud 6
7 V20018 3/8" Split Lock Washer 14
8 V20019 3/8" 16 SS Hex Nut 6
9 18010SS 3/8" - 16 x 1.25" HHCS 8
10 18044 FKM (viton type) Outlet Gasket 1
13 18042 FKM(viton type) Gasket Check Valve Assembly 1
14 18033 Handle 1
15 18034 5/8" SS Jam Nut 1
16 13777SS 3/4" Stainless Steel Plug 1
17 12777SS 1/2" Stainless Steel Plug 1
18 18021 Adapter Gasket 1
19 18049SS Hydraulic Motor Adapter 1
20 18055 Hydraulic Adapter Shaft 1
21 18502 Bearing 1
22 18056 1/2"-13 x 2" HHCS 2
25 17010 1/2" Hex Nut 2
26 HY1012 UM16-45A-HX Hydraulic Motor Assembly 1
27 18029 Clamp Assembly Unkeyed 1
28 13778V O-Ring FKM (viton type) 1
29 UV15163V O-Ring FKM (viton type) 1
Not Shown 18100SS Repair Kit(Consist of items 2, 3, 4, 5 & 18) 1
Replacement Parts for 2" Stainless Steel Hydraulic Adapter
Item Part Number Description Quantity Required
1 18049SS C-Flange Hydraulic Motor Adapter 1
2 18021 Gasket Adapter 1
3 18025SS Seal Assembly 1
4 18502 SKF 66306-2RS1/C3 Bearing 1
5 18055 Hydraulic Adapter Shaft 1
6 HY1012 Tyrone® Hydraulic Motor 1
9 18056 1/2"-13 x 2" HHCS Bolt 2
10 17010 1/2" Hex Nut 2
Banjo

Banjo

Banjo is a world-class producer of a wide range of mechanical and electrical valves, fittings, and self-priming centrifugal pumps for agriculture and numerous industrial applications that ship to every corner of the globe. Banjo employs an array of molding presses, numerous machining and assembly cells, and an optimized logistics system empowering our production and shipping operations.
