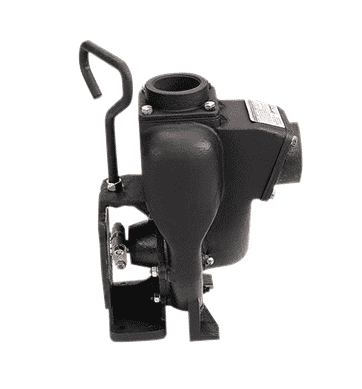

300POI Banjo 3" Cast Iron Pump Only for 1" Shaft

300POI by Banjo | Centrifugal Pumps | 3" Cast Iron Pump Only for 1" Shaft

Save $124.06 Save $124.06
$1,116.51
$1,116.51 - $1,116.51
$1,116.51
$992.45
$992.45 - $992.45
$992.45

Banjo Self-Priming Centrifugal Pumps - 3" Cast Iron Pumps with Gas Engines & Replacement Parts
Specifications for Variant SKU: 300POI Banjo

SPECIFICATIONS

Application: Fluids, Agriculture, Industrial
Product Manual: 3" Cast Iron & Stainless Steel Pump Instruction Manual Video: N/A
Features:
  • Cast iron construction for rugged dependable service
  • Stainless steel shaft sleeve to protect engine shaft
  • Carbon ceramic seal with stainless steel cup and spring with FKM (viton type) rubber
  • Replaceable inlet and outlet flanges
  • Dynamically balanced impeller
Notes:
  • CAUTION-WARNING: Please do not run pumps dry, restrict or reduce port sizes or dead head pumps. This could cause component failure to pump.
  • DO NOT USE WITH FLAMMABLE LIQUIDS.
  • NOTE: Engine warranty service available at authorized Briggs & Stratton® and Honda® dealers.
Part Number Description Horsepower
3" Cast Iron Pumps with Gas Engines
3" Cast Iron Pump Only
300POI 3" Cast Iron Pump Only for 1" Shaft N/A ---
3" Cast Iron Bearing Pedestal
300PBI 3" Cast Iron Bearing Pedestal with 1" Shaft N/A (Made to Order)
3" Cast Iron C-Flange Pumps
300POICF 3" Cast Iron C-Flange Pump with 11.8" Shaft Sleeve* N/A (Made to Order)
Universal Base Plate Assembly
18700 Base Plate Assembly for 1-1/2", 2" & 3" Cast Iron or Poly Pump (Plate, Coupling Guard, Bolt Bag & Shims) N/A ---
18702 Replacement Coupling Guard N/A ---
Polyethylene Suction Basket Strainers
300SBS 3" Female Thread Poly Basket N/A ---

Note: * Recommend: 7-1/2 HP, 3450 RPM, 184TC Frame Size for close coupling to electric motors.

Replacement Parts for 3" Cast Iron Pumps
Item Part Number Description Quantity Required
1 18008 NPT Outlet Flange 1
2 18012 NPT Inlet Flange 1
3 18026 Adapter for Gas Engine & Bearing Pedestal 1
3 18048 C-Flange Adapter 1
3 18049 Hydraulic Motor Adapter 1
Not Shown 18055 Hydraulic Adapter Shaft 1
4 13777 3/4" Plug 1
6 12777 1/2" Plug 1
7 18034 5/8" SS Jam Nut 1
8 18004 Wear Plate 1
9 18009 EPDM Outlet Gasket 1
10 18013 Gasket Check Valve Assembly 1
11 18021 Adapter Gasket 1
12 18010SS 3/8" - 16 x 1-1/8" SS Cap Screw HXHD 8
13 18033 Handle 1
14 18029 Clamp Assembly (Old Style) 1
14 18129 Clamp Assembly (New Style) 1
15 18001 Pump Housing 1
17 18106 Wear Plate Flat Head Screw 2
18 V20018 3/8" Lock Washer 8
20 18504 1" Shaft 1
21 18500 Bearing Pedestal 1
Not Shown 18502 Bearing SKF 66306-2RS1/C3 2
22 17704 Bolt 4
23 18025* FKM (viton type) Seal Assembly 1
23 18025SD Severe Duty Seal 1
24 V20019 3/8" 16 SS Hex Nut 6
25 V20018 3/8" SS Lock Washer 6
26 18218 3/8"-16 x 24 x 2-1/8" SS Stud 6
27 13778 O-Ring 1
28 UV15163 O-Ring 1
Not Shown 18035 Z-Rail Mounting Bracket (Pair) 1
Not Shown 18100 Repair Kit (Consist of items 5*, 8, 11, 17, 23*) 1
Banjo

Banjo

Banjo is a world-class producer of a wide range of mechanical and electrical valves, fittings, and self-priming centrifugal pumps for agriculture and numerous industrial applications that ship to every corner of the globe. Banjo employs an array of molding presses, numerous machining and assembly cells, and an optimized logistics system empowering our production and shipping operations.
