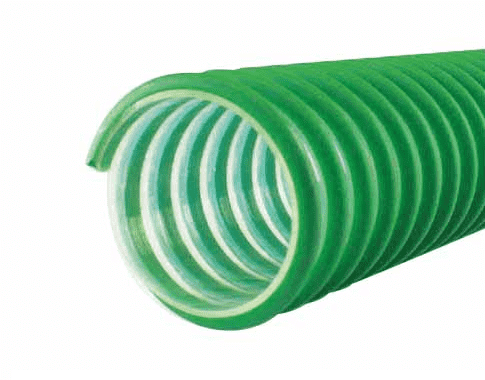

3021-0200-100 by Jason Industrial | 3021 Series | Material Handling and Duct Hose | 15 PSI | 2" ID | 2.40" OD | Green/Clear | Polyurethane | 100ft

3021-0200-100 by Jason Industrial | 3021 Series | Material Handling and Duct Hose | 15 PSI | 2" ID | 2.40" OD | Green/Clear | Polyurethane | 100ft

Save $4.75 Save $4.75
$442.08
$442.08 - $442.08
$442.08
$437.33
$437.33 - $437.33
$437.33

Jason Industrial Inc. Hose - Material Handling Hose - 3021 Polyurethane Material Handling and Duct Hose - Green/Clear

Package Quantity: 100 FT

Specifications for Variant SKU: 3021-0200-100 Jason | 100 |
Series: 3021 Series
Hose Color(s): Green
Internal Diameter: 2in
Outer Diameter: 2.40in
Tubing Construction: Polyurethane
Special Properties: Outer Helix Protection

SPECIFICATIONS

Application: Insulation blowing, fume removal, ducting, ventilation and dust collection. SAE Rating: N/A
Other Ratings: N/A Tube: Polyurethane Abrasion Resistant Tube
Reinforcement: Clockwise PVC Helix Cover: Clockwise PVC Helix
Temperature Range: -40 deg. F (-40 deg. C) to +140 deg. F (+60 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Branding: N/A
Other Features:
  • Abrasion resistant PU
  • Clear visual flow
  • -40 deg. F cold weather resistance
  • Sub-zero flexibility
  • Easy to drag with "Glo-Glide" external clockwise PVC helix
Part Number I.D. O.D. Reinforcement Max. Working Press. @ 68 deg. F Vacuum @ 68 deg. F Weight Min. Bend Radius Standard Length
in. mm in. mm PSI BAR inHg lb./ft. KG/m in. mm ft
Uncoupled
3021-0150-100 1-1/2" 38.10mm 1.82" 46.23mm PVC Helix 20 PSI 1.38 BAR 15.0 inHg 0.23 lb./ft. 0.34 KG/m 0.70" 17.80mm 100ft
3021-0200-100 2" 50.80mm 2.40" 60.96mm PVC Helix 15 PSI 1.03 BAR 12.0 inHg 0.32 lb./ft. 0.48 KG/m 1.37" 34.80mm 100ft
3021-0250-100 2-1/2" 63.50mm 2.90" 73.66mm PVC Helix 10 PSI 0.69 BAR 10.0 inHg 0.39 lb./ft. 0.58 KG/m 1.37" 34.80mm 100ft
3021-0300-100 3" 76.20mm 3.43" 87.12mm PVC Helix 10 PSI 0.69 BAR 10.0 inHg 0.55 lb./ft. 0.82 KG/m 2.25" 57.20mm 100ft
3021-0400-100 4" 101.60mm 4.48" 113.79mm PVC Helix 8 PSI 0.55 BAR 8.0 inHg 0.77 lb./ft. 1.15 KG/m 3.00" 76.20mm 100ft
Working pressure is temperature dependent. Jason Industrial Inc. disclaims any liability for use of their products in applications other than which they are designed.
Jason Industrial

Jason Industrial

Founded in 1958 in Fairfield, NJ, Jason Industrial quickly gained a solid reputation as a go to source for both industrial hose and power transmission belts. Jason Industrial offers a comprehensive portfolio of industrial hose, couplings and accessories along with hydraulic hose, fittings and crimping equipment.
