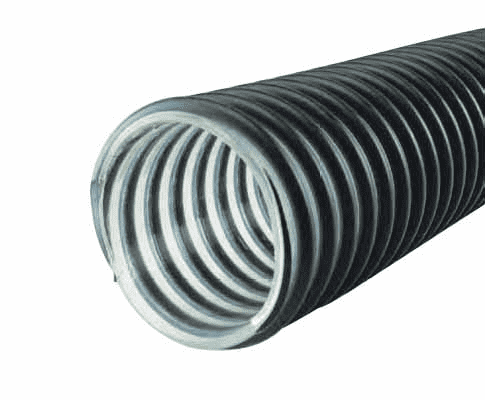

3022-0250-100 by Jason Industrial | 3022 Medium Duty Polyurethane Lined Material Handling Hose | Black/Clear | 20 PSI | 2-1/2" ID | 2.90" OD | 100ft

3022-0250-100 by Jason Industrial | 3022 Medium Duty Polyurethane Lined Material Handling Hose | Black/Clear | 20 PSI | 2-1/2" ID | 2.90" OD | 100ft

Save $6.50 Save $6.50
$699.83
$699.83 - $699.83
$699.83
$693.33
$693.33 - $693.33
$693.33

Jason Industrial Inc. Hose - Material Handling Hose - 3022 Medium Duty Polyurethane Lined Material Handling Hose - Black/Clear

Package Quantity: 100 FT

Specifications for Variant SKU: 3022-0250-100 Jason | 100 |
Series: 3022 Series
Hose Color(s): Black & Clear/Semi-Clear
Internal Diameter: 2.50in
Outer Diameter: 2.90in
Tubing Construction: Polyurethane
Special Properties: Conductive Hose Cover, Outer Helix Protection, Static Dissipating Cover

SPECIFICATIONS

Application: Dust collection, dry fertilizer, plastic pellets or any dry medium abrasive requirements. SAE Rating: N/A
Other Ratings: N/A Tube: Medium Duty Abrasion Resistant Polyurethane Liner
Reinforcement: Clockwise PVC Helix Cover: Static Dissipating PVC
Temperature Range: -40 deg. F (-40 deg. C) to +140 deg. F (+60 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Branding: N/A
Other Features:
  • Abrasion resistant PU tube
  • Clear visual flow
  • -40 deg. F cold weather resistance
  • Sub-zero flexibility
  • Easy to drag with "Glo-Glide" external clockwise PVC helix
  • Static dissipating PVC cover compound
Part Number I.D. O.D. Reinforcement Max. Working Press. @ 68 deg. F Vacuum @ 68 deg. F Weight Min. Bend Radius Standard Length
in. mm in. mm PSI BAR inHg lb./ft. KG/m in. mm ft
Uncoupled
3022-0150-100 1-1/2" 38.10mm 1.91" 48.51mm PVC Helix 30 PSI 2.07 BAR 24.0 inHg 0.29 lb./ft. 0.43 KG/m 1.37" 34.80mm 100ft
3022-0200-100 2" 50.80mm 2.46" 62.48mm PVC Helix 25 PSI 1.72 BAR 22.0 inHg 0.40 lb./ft. 0.60 KG/m 2.50" 63.50mm 100ft
3022-0250-100 2-1/2" 63.50mm 2.90" 73.66mm PVC Helix 20 PSI 1.38 BAR 19.0 inHg 0.54 lb./ft. 0.80 KG/m 2.50" 63.50mm 100ft
3022-0300-100 3" 76.20mm 3.53" 89.66mm PVC Helix 20 PSI 1.38 BAR 18.0 inHg 0.68 lb./ft. 1.01 KG/m 4.00" 101.60mm 100ft
3022-0400-100 4" 101.60mm 4.57" 116.08mm PVC Helix 15 PSI 1.03 BAR 13.0 inHg 1.01 lb./ft. 1.50 KG/m 6.00" 152.40mm 100ft
Working pressure is temperature dependent. Jason Industrial Inc. disclaims any liability for use of their products in applications other than which they are designed.
