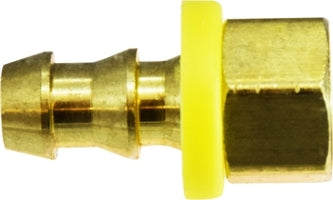

30316 (30-316) Midland Push On Hose Barb - Inverted Flare Female Adapter - 5/16" Hose ID x 5/16" Female Inverted Flare - Brass

30316 by Midland | Push On Hose Barb | Inverted Flare | 5/16" Hose ID x 5/16" Female Inverted Flare | Adapter | Brass

Save $0.60

$5.43

$5.43 - $5.43

$5.43

$4.83

$4.83 - $4.83

$4.83

Midland Industries
Brass Fitting - Push On Barb Fitting - Inverted Flare Female Adapter

Inventory @ Manufacturers Warehouse: 68 Units

Quantity

Specifications for Variant SKU: 30316 Midland
Shape (Orientation):	Straight
Ends Configuration:	5/16in Push-On Hose Barb, 5/16in Female Inverted Flare
Material(s):	Brass

SPECIFICATIONS

Applications:	Low Pressure Air, Fuel, Lube, and Oil Lines Pressure determined by tube material and hardness. Midland Parts have been tested to max 150 PSI	Advantages:	Easy assembly. No clamps needed.
SAE Rating:	N/A	Lead Free:	No

Assembly Instructions:
1) Lubricate insert. 2) Hold hose at angle as shown & push on and up over first barb. 3) Continue to push straight on until hose is seated under protective plastic cap. Keep hands back from hose end area so that hose can expand.
Disassembling Instructions:
1) Split hose. Do not cut completely through hose. Sealing edge of barb could be damaged. 2) Bend hose and remove with a quick pull.

Crossover Series:
29P013	129PO13	306	100B-A	KA-NG	292	P990-J	736	692	946


Part Number	Hose ID x Female Inverted Flare	A	B	Hex	Approx. Weight (Lbs.)
30310 (30-310)	1/4" x 3/16"	1.12"	0.84"	0.50"	0.02
30311 (30-311)	1/4" x 1/4"	1.14"	0.84"	0.56"	0.02
30312 (30-312)	1/4" x 5/16"	1.18"	0.82"	0.62"	0.02
30316 (30-316)	5/16" x 5/16"	1.25"	0.81"	0.62"	0.04
30313 (30-313)	3/8" x 5/16"	1.32"	0.87"	0.62"	0.04
30314 (30-314)	3/8" x 3/8"	1.35"	0.95"	0.75"	0.06
30315 (30-315)	1/2" x 1/2"	1.73"	1.04"	0.87"	0.12

Midland Industries

Midland Industries is a family of brands recognizable industry wide. Midland is a supplier of brass fittings, valves, and accessories for hose, pipe and tube in brass, bronze, stainless steel, steel, malleable iron, and plastics.
