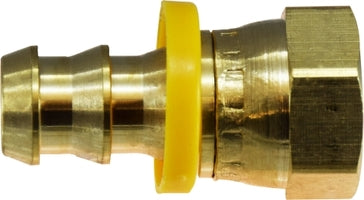

30428 (30-428) Midland Push On Hose Barb Fitting - SAE/JIC Dual 45°/37° Female Swivel - 7/8-14 UNF Thread - 3/4" Hose ID x 5/8" Dual Seat - Brass

30428 by Midland | Push On Hose Barb Fitting | SAE/JIC Dual 45°/37° Female Swivel | 7/8-14 UNF Thread | 3/4" Hose ID x 5/8" Dual Seat | Brass

Save $1.38

$12.42

$12.42 - $12.42

$12.42

$11.04

$11.04 - $11.04

$11.04

Midland Industries
Brass Fitting - Push On Barb Fitting - SAE/JIC Dual 45°/37° Female Swivel

Quantity

Specifications for Variant SKU: 30428 Midland
Shape (Orientation):	Straight
Ends Configuration:	3/4in Push-On Hose Barb, 5/8in Female JIC, 5/8in Female SAE 45 Flare
Material(s):	Brass

SPECIFICATIONS

Applications:	Low Pressure Air, Fuel, Lube, and Oil Lines Pressure determined by tube material and hardness. Midland Parts have been tested to max 150 PSI	Advantages:	Easy assembly. No clamps needed.
SAE Rating:	N/A	Lead Free:	No

Assembly Instructions:
1) Lubricate insert. 2) Hold hose at angle as shown & push on and up over first barb. 3) Continue to push straight on until hose is seated under protective plastic cap. Keep hands back from hose end area so that hose can expand.
Disassembling Instructions:
1) Split hose. Do not cut completely through hose. Sealing edge of barb could be damaged. 2) Bend hose and remove with a quick pull.

Crossover Series:
29PO5	129PO10	29FDS	287	HDF	309	735	690	P990-K	305	935/934


Part Number	Hose ID x Dual Seat	UNF Thread	A	B	Hex	Approx. Weight (Lbs.)
30230 (30-230)	1/4" x 1/4"	7/16-20	1.53"	0.87"	0.56"	0.06
30231 (30-231)	1/4" x 5/16"	1/2-20	1.53"	0.87"	0.62"	0.04
30232 (30-232)	5/16" x 5/16"	1/2-20	1.56"	0.87"	0.62"	0.04
30427 (30-427)	3/8" x 5/16"	1/2-20	1.74"	0.87"	0.62"	0.06
30233 (30-233)	3/8" x 1/2"	3/4-16	1.79"	0.97"	0.87"	0.10
30234 (30-234)	1/2" x 1/2"	3/4-16	1.77"	0.97"	0.87"	0.10
30235 (30-235)	1/2" x 5/8"	7/8-14	1.84"	0.97"	1.00"	0.12
30236 (30-236)	5/8" x 1/2"	3/4-16	2.27"	1.45"	0.87"	0.18
30237 (30-237)	5/8" x 5/8"	7/8-14	2.33"	1.45"	1.00"	0.14
30428 (30-428)	3/4" x 5/8"	7/8-14	2.33"	1.45"	1.00"	0.20
