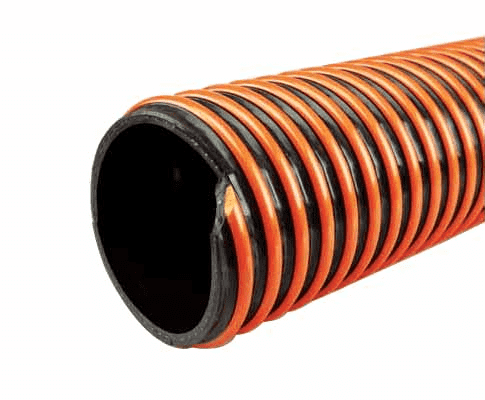

3058-0300-100 by Jason Industrial | 3058 Series | Drop Hose for Suction & Delivery of Gasoline | S-omega | 65 PSI | 3" ID | 3.68" OD | Orange/Black | NBR/PVC | 100ft

Save $17.10

$1,643.77

$1,643.77 - $1,643.77

$1,643.77

$1,626.67

$1,626.67 - $1,626.67

$1,626.67

Jason Industrial Inc. Hose - Material Handling Hose - 3058 NBR/PVC Drop Hose For Suction and Delivery of Gasoline - SΩ - Orange/Black

Package Quantity: 100 FT

Quantity

Specifications for Variant SKU: 3058-0300-100 Jason \| 100 \|
Series:	3058 Series
Hose Color(s):	Orange
Internal Diameter:	3in
Outer Diameter:	3.68in
Tubing Construction:	Nitrile/PVC Blend
Special Properties:	Ground Wire in Hose, Outer Helix Protection

SPECIFICATIONS

Other Features:
Application:	Used to deliver gasoline, diesel fuel, kerosene and fuels with aromatic content to 40%.	SAE Rating:	N/A
Other Ratings:	N/A	Tube:	NBR/PVC Tube, Smooth Bore, Embedded SΩ Ground Wire in the Hose Wall
Reinforcement:	Clockwise PVC Helix, One Braid of High Tensile Polyester Yarn	Cover:	N/A
Temperature Range:	-10 deg. F (-23 deg. C) to +140 deg. F (+60 deg. C)	Crimp Fittings:	N/A
Reusable Fittings:	N/A	Branding:	N/A
Higher transfer pressures Easy to drag with "Go-Glide" external clockwise PVC helix SΩ ground wire embedded into hose wall to help prevent the build-up of static electricity. Wire must be secured to ground to dissipate static electricity.

Part Number	I.D.		O.D.		Reinforcement Braids	Max. Working Press. @ 68 deg. F		Vacuum @ 68 deg. F	Weight		Min. Bend Radius		Standard Length
	in.	mm	in.	mm		PSI	BAR	inHg	lb./ft.	KG/m	in.	mm	ft
Uncoupled
3058-0200-100	2"	50.80mm	2.68"	68.07mm	1	70 PSI	4.83 BAR	29.9 inHg	1.13 lb./ft.	1.68 KG/m	5.00"	127.00mm	100ft
3058-0300-100	3"	76.20mm	3.68"	93.47mm	1	65 PSI	4.48 BAR	29.9 inHg	1.37 lb./ft.	2.04 KG/m	6.00"	152.40mm	100ft
3058-0400-100	4"	101.60mm	4.80"	121.92mm	1	65 PSI	4.48 BAR	29.9 inHg	2.16 lb./ft.	3.21 KG/m	8.00"	203.20mm	100ft

Note: Use JASON ORANGE banding sleeves only when securing coupling for 3" and 4" ID's. Discharge pressures and vacuum are temperature dependent. SΩ = Safety Ohm Working pressure is temperature dependent. Jason Industrial Inc. disclaims any liability for use of their products in applications other than which they are designed.
