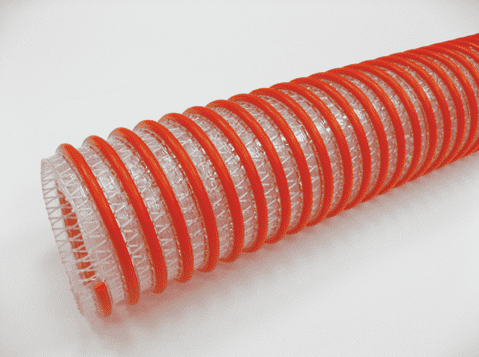

3076-0300-100 by Jason Industrial | 3076 Series | Heavy-duty Suction & Transfer Hose | 100 PSI | 3" ID | 3.70" OD | Orange/Clear | PVC | 100ft

3076-0300-100 by Jason Industrial | 3076 Series | Heavy-duty Suction & Transfer Hose | 100 PSI | 3" ID | 3.70" OD | Orange/Clear | PVC | 100ft

Save $6.00 Save $6.00
$630.00
$630.00 - $630.00
$630.00
$624.00
$624.00 - $624.00
$624.00

Jason Industrial Inc. Hose - Water Hose - 3076 Heavy-Duty PVC Suction & Transfer Hose - Orange/Clear

Package Quantity: 100 FT

Specifications for Variant SKU: 3076-0300-100 Jason | 100 |
Series: 3076 Series
Hose Color(s): Orange & Clear/Semi-Clear
Internal Diameter: 3in
Outer Diameter: 3.70in
Tubing Construction: PVC
Special Properties: Outer Helix Protection
Application: HD fish suction and transfer, HD water suction and transfer for rental, construction, and trash pumps SAE Rating: N/A
Other Ratings: N/A Tube: PVC
Reinforcement: Clockwise PVC Helix, High Tensile Strength Polyester Yarn Cover: N/A
Temperature Range: -13 deg F (-25 deg. C) to +140 deg. F (+60 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Branding: N/A
Other Features:
  • Clear visual flow
  • Higher transfer pressures
  • Excellent flexibility
  • Easy to drag with "Go-Glide" external clockwise PVC helix
  • Vacuum up to 29" of Hg
Part Number I.D. O.D. Reinforcement Braids Max. Working Press. @ 68 deg. F Vacuum @ 68 deg. F Weight Min. Bend Radius Standard Length
in. mm in. mm PSI BAR inHg lb./ft. KG/m in. mm ft
Uncoupled
3076-0150-100 1-1/2" 38.10mm 2.03" 51.56mm 1 110 PSI 7.58 BAR 29.0 inHg 0.47 lb./ft. 0.70 KG/m 2.50" 63.50mm 100ft
3076-0200-100 2" 50.80mm 2.60" 66.04mm 1 100 PSI 6.89 BAR 29.0 inHg 0.69 lb./ft. 1.03 KG/m 4.00" 101.60mm 100ft
3076-0250-100 2-1/2" 63.50mm 3.01" 76.45mm 1 100 PSI 6.89 BAR 29.0 inHg 0.74 lb./ft. 1.10 KG/m 5.00" 127.00mm 100ft
3076-0300-100 3" 76.20mm 3.70" 93.98mm 1 100 PSI 6.89 BAR 28.0 inHg 1.13 lb./ft. 1.68 KG/m 6.00" 152.40mm 100ft
3076-0400-100 4" 101.60mm 4.78" 121.41mm 1 80 PSI 5.52 BAR 28.0 inHg 1.74 lb./ft. 2.59 KG/m 7.00" 177.80mm 100ft
3076-0500-100 5" 127.00mm 6.04" 153.42mm 1 80 PSI 5.52 BAR 28.0 inHg 2.99 lb./ft. 4.45 KG/m 9.00" 228.60mm 100ft
3076-0600-100 6" 152.40mm 7.17" 182.12mm 1 70 PSI 4.83 BAR 28.0 inHg 2.99 lb./ft. 4.45 KG/m 9.00" 228.60mm 100ft
Note: Discharge pressures and vacuum are temperature dependent. Jason Industrial Inc. disclaims any liability for use of their products in applications other than which they are designed.
Jason Industrial

Jason Industrial

Founded in 1958 in Fairfield, NJ, Jason Industrial quickly gained a solid reputation as a go to source for both industrial hose and power transmission belts. Jason Industrial offers a comprehensive portfolio of industrial hose, couplings and accessories along with hydraulic hose, fittings and crimping equipment.
