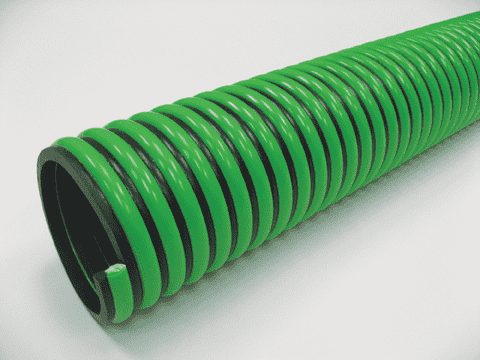

3080-0200-100 by Jason Industrial | 3080 Series | Suction Hose | 50 PSI | 2" ID | 2.43" OD | Green/Black | EPDM | 100ft

3080-0200-100 by Jason Industrial | 3080 Series | Suction Hose | 50 PSI | 2" ID | 2.43" OD | Green/Black | EPDM | 100ft

Save $3.77 Save $3.77
$383.77
$383.77 - $383.77
$383.77
$380.00
$380.00 - $380.00
$380.00

Jason Industrial Inc. Hose - Water Hose - 3080 EPDM Suction Hose - Green/Black

Package Quantity: 100 FT

Specifications for Variant SKU: 3080-0200-100 Jason | 100 |
Series: 3080 Series
Hose Color(s): Black & Green
Internal Diameter: 2in
Outer Diameter: 2.43in
Tubing Construction: EPDM
Special Properties: Outer Helix Protection

SPECIFICATIONS

Application: Septic, Waste Water and Liquid Manure Handling, Agricultural Liquid Fertilizers, Standard Duty Water Suction, Suction and Transfer for Rental, Construction and Trash Pumps SAE Rating: N/A
Other Ratings: N/A Tube: EPDM
Reinforcement: Polyethylene, Clockwise Helix Cover: N/A
Temperature Range: -40 deg F (-40 deg. C) to +140 deg. F (+60 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Branding: N/A
Other Features:
  • Mild EPDM chemical resistance
  • -40 deg. F cold weather resistance
  • Sub-zero flexibility
  • Clockwise polyethylene helix
  • Vacuum up to 29" of Hg
Part Number I.D. O.D. Reinforcement Braids Max. Working Press. @ 68 deg. F Vacuum @ 68 deg. F Weight Min. Bend Radius Standard Length
in. mm in. mm PSI BAR inHg lb./ft. KG/m in. mm ft
Uncoupled
3080-0150-100 1-1/2" 38.10mm 1.85" 46.99mm PE Helix 50 PSI 3.45 BAR 29.0 inHg 0.41 lb./ft. 0.61 KG/m 3.80" 96.50mm 100ft
3080-0200-100 2" 50.80mm 2.43" 61.72mm PE Helix 50 PSI 3.45 BAR 29.0 inHg 0.67 lb./ft. 1.00 KG/m 5.50" 139.70mm 100ft
3080-0300-100 3" 76.20mm 3.52" 89.41mm PE Helix 45 PSI 3.10 BAR 29.0 inHg 1.10 lb./ft. 1.64 KG/m 7.50" 190.50mm 100ft
3080-0400-100 4" 101.60mm 4.60" 116.84mm PE Helix 38 PSI 2.62 BAR 29.0 inHg 1.84 lb./ft. 2.74 KG/m 11.50" 292.10mm 100ft
Working pressure is temperature dependent. Jason Industrial Inc. disclaims any liability for use of their products in applications other than which they are designed.
