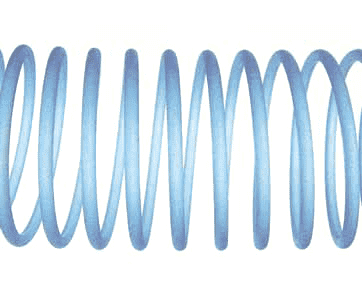

3098-0400 by Jason Industrial | FDA Banding Coil | Clockwise | Fits 4" Hose ID | Coil Length: 9" | PVC

Save $0.10

$10.22

$10.22 - $10.22

$10.22

$10.12

$10.12 - $10.12

$10.12

Jason Industrial Inc. Couplings & Accessories - Accessories - Banding Coils - FDA PVC

Quantity

Specifications for Variant SKU: 3098-0400 Jason
Shape (Orientation):	No Orientation
Material(s):	PVC

Application:
Clockwise coils allow for a better coupling securing surface on the hose O.D.
Features:
Made with clear FDA PVC, 3098 can be used on any thermoplastic cover compound. Fits high profile clockwise O.D. corrugations for a smooth coupling securing surface. Fits low profile clockwise O.D. corrugations for a slightly raised coupling securing surface. Cut one length in half to accomodate both ends of one hose assembly.
Construction:
Clear FDA PVC
Safety Warnings:
Please do not mix Jason Industrial couplings with other products.

Part Number	Fits Hose ID		Coil Length
	in.	mm	in.	mm
3098-0150	1-1/2"	38.1mm	6"	152.4mm
3098-0200	2"	50.8mm	7"	177.8mm
3098-0250	2-1/2"	63.5mm	8"	203.2mm
3098-0300	3"	76.2mm	8"	203.2mm
3098-0400	4"	101.6mm	9"	228.6mm
3098-0500	5"	127.0mm	10"	254.0mm
3098-0600	6"	152.4mm	14"	355.6mm

Jason Industrial Inc. disclaims any liability for use of their products in applications other than which they are designed.

Jason Industrial

Founded in 1958 in Fairfield, NJ, Jason Industrial quickly gained a solid reputation as a go to source for both industrial hose and power transmission belts. Jason Industrial offers a comprehensive portfolio of industrial hose, couplings and accessories along with hydraulic hose, fittings and crimping equipment.
