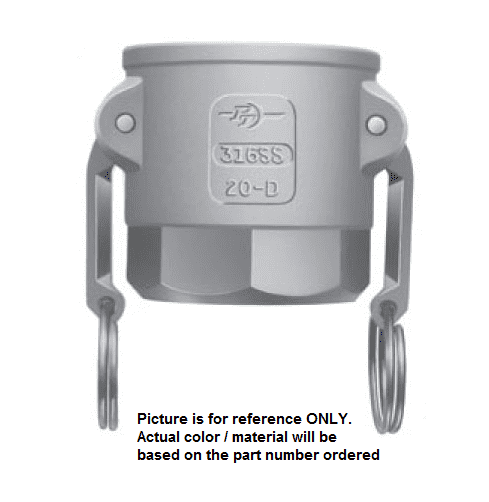

6039000058 (30DFH) by PT-Coupling | 3" Coupler x 3" Female Fire Hose (NH) Thread | Aluminum/HB | EPDM & Buna-N Seals

6039000058 (30DFH) by PT-Coupling | 3" Coupler x 3" Female Fire Hose (NH) Thread | Aluminum/HB | EPDM & Buna-N Seals

Save $9.23 Save $9.23
$83.04
$83.04 - $83.04
$83.04
$73.81
$73.81 - $73.81
$73.81
Specifications for Variant SKU: 6039000058 PT-Coupling
Shape (Orientation): Straight
Cam Type: Type B
Ends Configuration: 3in Female Cam & Groove, 3in Female NST
Material(s): Aluminum
Seal Material(s): Buna-N/Nitrile

PRODUCT DESCRIPTION

PT Coupling - Special Cam & Groove Couplings - Part DFH - Coupler x Female Fire Hose (NH) Thread - Aluminum/HB
Features & Applications:
  • HB cam arms are made of Brass.
  • Lightweight and economical. Good abrasion resistance. Fair corrosion and chemical resistance.
  • Use with water, hydraulic oil, coolants, gasoline, and petroleum products.
  • Comes standard with EPDM NH Thread Gasket and Buna-N cam gasket.
  • Made in the USA
This Fitting is also Available in the Following Materials:
Accessories:

Part
Name		 Item # Coupler
Size		 Female Fire Hose
Thread (NH)
Size		 O. D. with
Cam Arms
Extended
(A)		 Outside
Diameter
(B)		 Overall
Length
(C)		 Inside
Diameter
(E)		 Max. Allowable
Working Press.
(PSI)*
15DFH 6039000056 1-1/2" 1-1/2" 7.16" 3.56" 2.80" 1.50" 250 PSI
25DFH 6039000057 2-1/2" 2-1/2" 8.03" 4.43" 3.40" 2.38" 200 PSI
30DFH 6039000058 3" 3" 9.56" 5.46" 3.50" 2.88" 200 PSI
30X25DFH 6039000059 3" 2-1/2" 9.56" 5.46" 3.50" 2.88" 200 PSI
*Above maximum allowable working pressures are based on operating temperatures less than 100°F.
