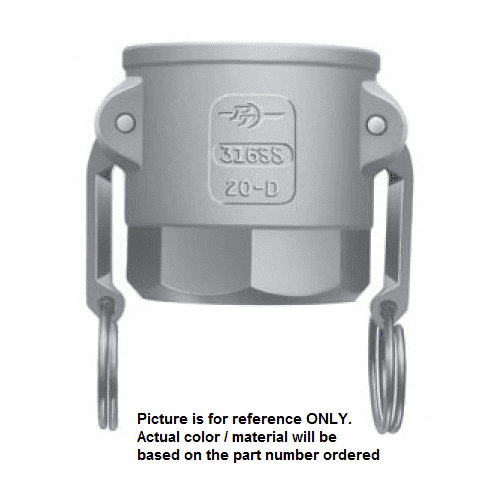

60393025 (30X25DFH) by PT-Coupling | Reducing 3" Coupler x 2-1/2" Female Fire Hose (NH) Thread | Aluminum/HBS | EPDM & Buna-N Seals

60393025 (30X25DFH) by PT-Coupling | Reducing 3" Coupler x 2-1/2" Female Fire Hose (NH) Thread | Aluminum/HBS | EPDM & Buna-N Seals

Save $9.61 Save $9.61
$86.49
$86.49 - $86.49
$86.49
$76.88
$76.88 - $76.88
$76.88
Specifications for Variant SKU: 60393025 PT-Coupling
Shape (Orientation): Straight
Cam Type: Type B
Ends Configuration: 3in Female Cam & Groove, 2-1/2in Female NST
Material(s): Aluminum
Seal Material(s): Buna-N/Nitrile

PRODUCT DESCRIPTION

PT Coupling - Special Cam & Groove Couplings - Part DFH - Coupler x Female Fire Hose (NH) Thread - Aluminum/HBS
Features & Applications:
  • HBS cam arms are made of 300 series Stainless Steel.
  • Lightweight and economical. Good abrasion resistance. Fair corrosion and chemical resistance.
  • Use with water, hydraulic oil, coolants, gasoline, and petroleum products.
  • Comes standard with EPDM NH Thread Gasket and Buna-N cam gasket.
  • Made in the USA
This Fitting is also Available in the Following Materials:
Accessories:

Part
Name		 Item # Coupler
Size		 Female Fire Hose
Thread (NH)
Size		 O. D. with
Cam Arms
Extended
(A)		 Outside
Diameter
(B)		 Overall
Length
(C)		 Inside
Diameter
(E)		 Max. Allowable
Working Press.
(PSI)*
15DFH 60391500 1-1/2" 1-1/2" 7.16" 3.56" 2.80" 1.50" 250 PSI
25DFH 60392500 2-1/2" 2-1/2" 8.03" 4.43" 3.40" 2.38" 200 PSI
30DFH 60393000 3" 3" 9.56" 5.46" 3.50" 2.88" 200 PSI
30X25DFH 60393025 3" 2-1/2" 9.56" 5.46" 3.50" 2.88" 200 PSI
*Above maximum allowable working pressures are based on operating temperatures less than 100°F.
PT-Coupling

PT-Coupling

PT Coupling is a renowned manufacturer of Cam & Groove fittings, Punch-Lok banding, and clamps for industrial hoses. Established in 1951, the company offers a range of products made from different materials and is known for their innovative proprietary Punch-Lok design. PT Coupling's products are trusted by customers worldwide in various industries, such as agriculture, construction, and mining. With a commitment to quality and customer service, PT Coupling continues to be a leading producer of industrial hose fittings.
