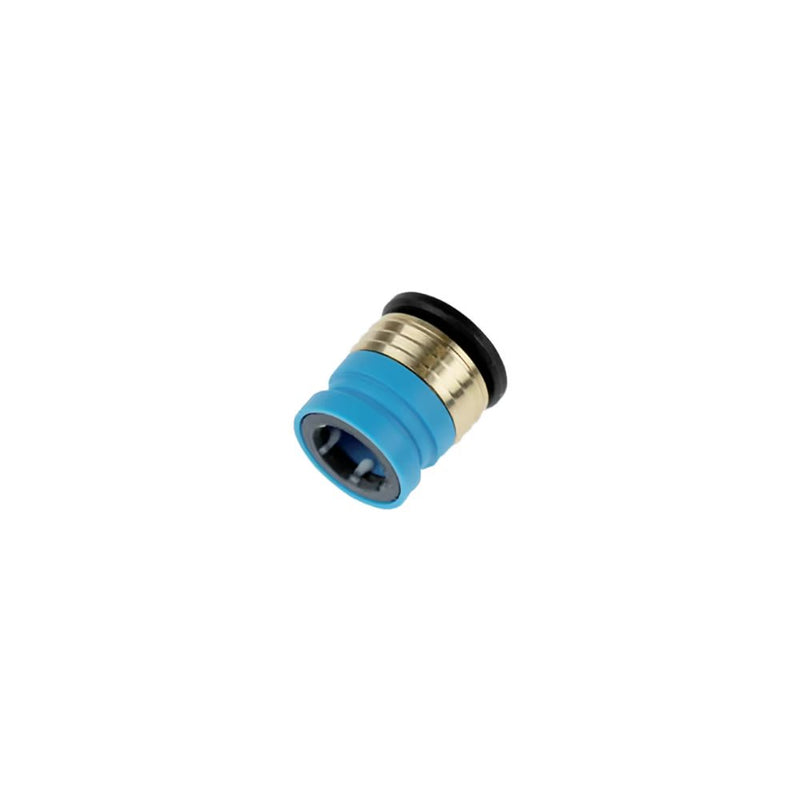

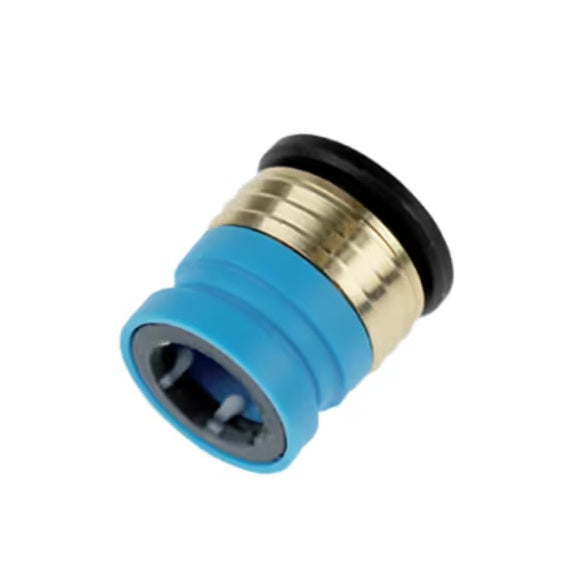

3100 08 00 99 by Parker | Legris Cartridge | 5/16" Push-to-Connect | 15 mm Length | Polymer | Pack of 50

Save $9.46

$127.46

$127.46 - $127.46

$127.46

$118.00

$118.00 - $118.00

$118.00

by Parker Hannifin
LF 3000® Push-In Fittings / Stud Fittings:3100 Carstick® Cartridge

Package Quantity: 50 Units

Quantity

Specifications for Variant SKU: 3100 08 00 99 Parker \| 50 \|
Brand:	Carstick®
Series:	3100 Series
Shape (Orientation):	No Orientation
Material(s):	Stainless Steel, Polymer, Nickel-Plated Brass
Seal Material(s):	Buna-N/Nitrile Rubber

Technical Characteristics:	Compatible Fluids: Compressed air Working Pressure: Vacuum to 20 bar Working Temperature: -20°C to +80°C
Advantages:	Robust, lightweight, compact to build your pneumatic circuits Full flow connections to optimize flow rates Use in vacuum as well as in compressed air Customized products upon request. Please, contact us
Regulations:	ISO 14743 PED RoHS REACH
Component Materials:	Gripping Ring: Stainless Steel Body: Technical Polymer BSPP Thread Sealing: NBR O-Ring BSPT/NPT: Pre-coating Adaptor: Nickel-Plated Brass Sealing Ring: NBR Release Button Technical Polymer


Part Number	ØD	G	G1	H	L	Kg
3100 53 00 99	1/8"	7 mm	10 mm	9 mm	508 mm	.002 Kg
3100 04 00 99	5/32"	8 mm	11 mm	10 mm	554 mm	.007 Kg
3100 06 00 99	6 mm	.393"	.571"	.453"	24.76"	.02 Kg
3100 56 00 99	1/4"	10.5 mm	14.5 mm	12 mm	600 mm	.003 Kg
3100 08 00 99	5/16"	13 mm	15 mm	15 mm	794 mm	.002 Kg
3100 60 00 99	3/8"	15.5 mm	19 mm	16.5 mm	930 mm	.006 Kg
3100 10 00 99	10 mm	.610"	.768"	.669"	36.61"	.005 Kg
3100 12 00 99	12 mm	.768"	.827"	.768"	40.87"	.0091 Kg

50 cartridges per Carstick®

(4 mm) and 5/16” (8 mm) also available.

Cavity dimensions are available upon request
