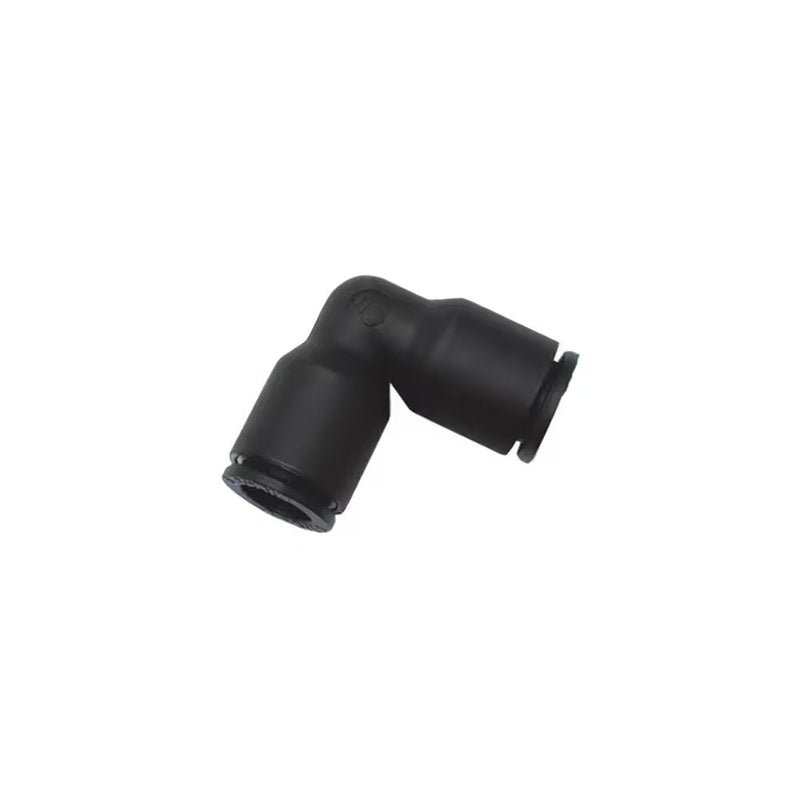

3102 04 00 by Parker | Legris Push-In Fitting | 4 mm Push-to-Connect x 4 mm Push-to-Connect | 19 mm Length | 90° Elbow | Polymer | Pack of 10

Save $3.05

$33.56

$33.56 - $33.56

$33.56

$30.51

$30.51 - $30.51

$30.51

by Parker Hannifin
LF 3000® Push-In Fittings / Stud Fittings:3102 Equal and Unequal Elbow

Package Quantity: 10 Units

Quantity

Specifications for Variant SKU: 3102 04 00 Parker \| 10 \|
Brand:	LF 3000®
Series:	3102 Series
Shape (Orientation):	90° Elbow
Material(s):	Stainless Steel, Polymer
Seal Material(s):	Buna-N/Nitrile Rubber
Special Properties:	Silicone Free, Lightweight

Technical Characteristics:	Compatible Fluids: Compressed air Working Pressure: Vacuum to 20 bar Working Temperature: -20°C to +80°C
Advantages:	Robust, lightweight, compact to build your pneumatic circuits Full flow connections to optimize flow rates Use in vacuum as well as in compressed air Customized products upon request. Please, contact us
Regulations:	ISO 14743 PED RoHS REACH
Component Materials:	Gripping Ring: Stainless Steel Body: Technical Polymer BSPP Thread Sealing: NBR O-Ring BSPT/NPT: Pre-coating Adaptor: Nickel-Plated Brass Sealing Ring: NBR Release Button Technical Polymer


Part Number	ØD	ØD1	G	L	Kg
3102 04 00	4 mm	4 mm	8.5 mm	19 mm	.001
3102 04 06	4 mm	6 mm	10.5 mm	22.5 mm	.003
3102 06 00	6 mm	6 mm	10.5 mm	22.5 mm	.002
3102 06 08	6 mm	8 mm	13.5 mm	29.5 mm	.008
3102 08 00	8 mm	8 mm	13.5 mm	29.5 mm	.004
3102 08 10	8 mm	10 mm	16 mm	34.5 mm	.011
3102 10 00	10 mm	10 mm	16 mm	34.5 mm	.006
3102 10 12	10 mm	12 mm	19 mm	40.5 mm	.019
3102 12 00	12 mm	12 mm	19 mm	40.5 mm	.010
3102 14 00	14 mm	14 mm	22 mm	46.5 mm	.015
3102 16 00	16 mm	16 mm	27 mm	52 mm	.043

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
