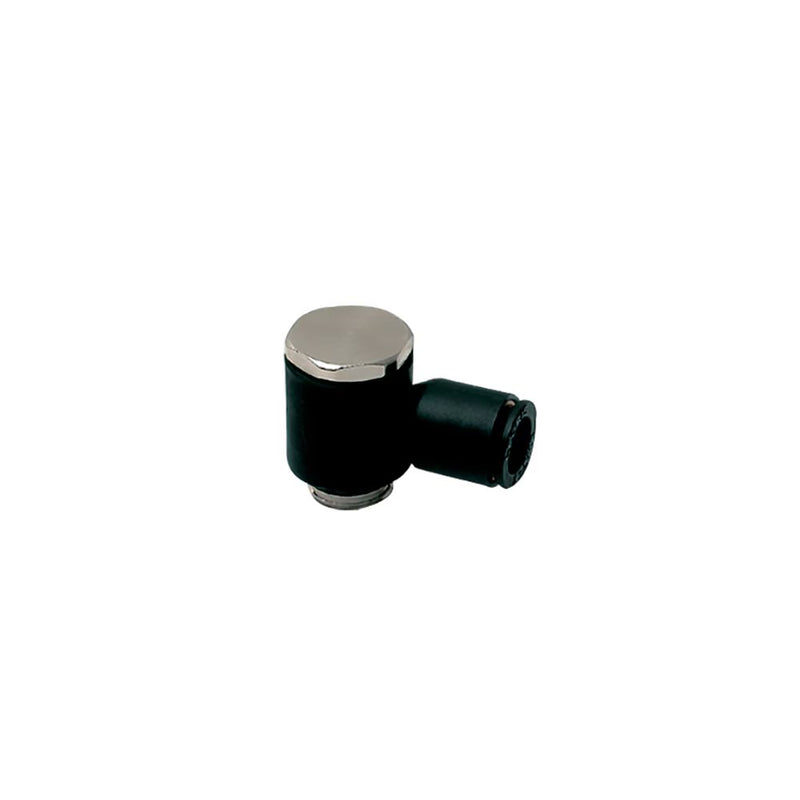

3118 06 19 by Parker | Legris Banjo Fittings | 6 mm Tube Size x M5x0.8 Male M5 Thread | 25.50 mm Length | Banjo | Polymer | Pack of 10

Save $9.45

$103.90

$103.90 - $103.90

$103.90

$94.45

$94.45 - $94.45

$94.45

by Parker Hannifin
LF 3000® Push-In Fittings / Banjo Fittings:3118 Single Banjo, Male BSPP and Metric Thread

Package Quantity: 10 Units

Quantity

Specifications for Variant SKU: 3118 06 19 Parker \| 10 \|
Series:	3118 Series
Shape (Orientation):	Banjo
Material(s):	Nickel-Plated Brass, Polymer
Seal Material(s):	Buna-N/Nitrile Rubber
Special Properties:	Silicone Free

Technical Characteristics:	Compatible Fluids: Compressed air Working Pressure: Vacuum to 20 bar Working Temperature: -20°C to +80°C
Advantages:	Screwed from above, for minimum space between connections 360° orientable Stacking of banjo bodies to allow construction of 2 to 6 outlets
Regulations:	ISO 14743 PED RoHS REACH
Component Materials:	Bolt: Nickel-plated brass, with or without pre-coating, depending on the configuration Body: Technical Polymer O-Ring: NBR Release Button Technical Polymer


Part Number	ØD	C	E	F	G	H	L1	L2	Kg
3118 03 09*	3 mm	M3x0.5	3 mm	-	8.5 mm	13 mm	5 mm	16 mm	.005 Kg
3118 04 19*	4 mm	M5x0.8	4 mm	- mm	8.5 mm	13 mm	5 mm	16.5 mm	.004 Kg
3118 04 10	4 mm	1/8"	4 mm	13 mm	8.5 mm	17 mm	7 mm	18.5 mm	.012 Kg
3118 06 19*	6 mm	M5x0.8	4 mm	- mm	10.5 mm	13 mm	7 mm	18.5 mm	.004 Kg
3118 06 10	6 mm	1/8"	4 mm	13 mm	10.5 mm	17 mm	7 mm	20 mm	.013 Kg
3118 06 13	6 mm	1/4"	5.5 mm	17 mm	10.5 mm	21 mm	9.5 mm	22 mm	.023 Kg
3118 08 10	8 mm	1/8"	4 mm	13 mm	13.5 mm	16.5 mm	7 mm	25 mm	.014 Kg
3118 08 13	8 mm	1/4"	5.5 mm	17 mm	13.5 mm	21 mm	9 mm	27 mm	.024 Kg
3118 08 17	8 mm	3/8"	5.5 mm	20 mm	13.5 mm	24.5 mm	11 mm	29 mm	.038 Kg
3118 10 13	10 mm	1/4"	5.5 mm	17 mm	16 mm	21 mm	9.5 mm	29 mm	.025 Kg
3118 10 17	10 mm	3/8"	5.5 mm	20 mm	16 mm	24.5 mm	11 mm	31 mm	.039 Kg
3118 10 21	10 mm	1/2"	8 mm	25 mm	19 mm	27.5 mm	13.5 mm	36.5 mm	.083 Kg
3118 12 17	12 mm	3/8"	5.5 mm	20 mm	19 mm	24.5 mm	11 mm	34.5 mm	.040 Kg
3118 12 21	12 mm	1/2"	8 mm	25 mm	19 mm	27.5 mm	13.5 mm	36.5 mm	.075 Kg

*With screwdriver slot
