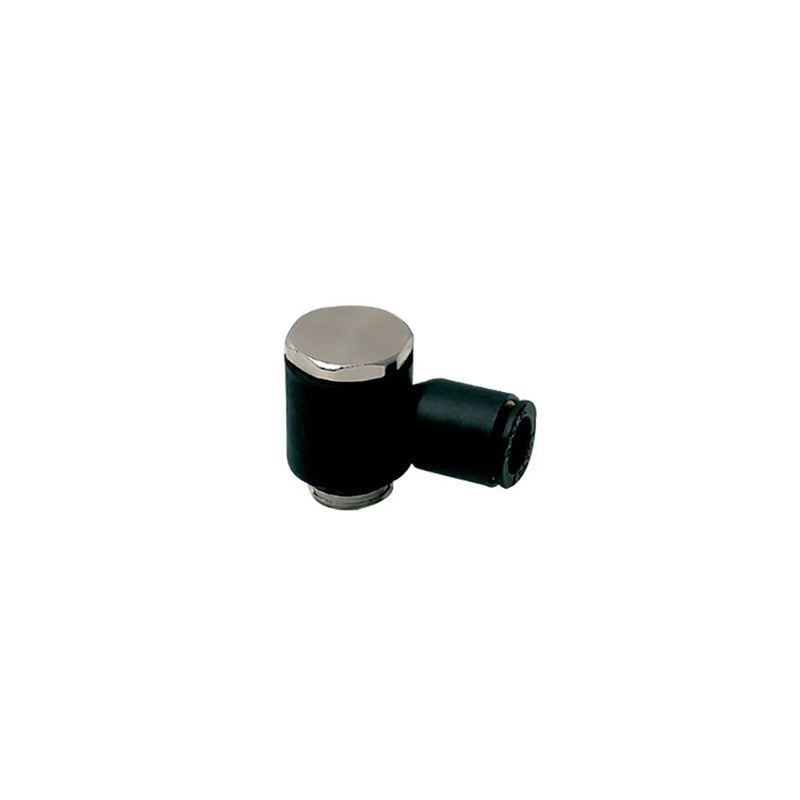

3118 53 20 by Parker | Banjo Fitting | 1/8" Push-to-Connect x 10-32 Male UNF Thread | .85" Length | Banjo | Nylon

3118 53 20 by Parker | Banjo Fitting | 1/8" Push-to-Connect x 10-32 Male UNF Thread | .85" Length | Banjo | Nylon | Pack of 10

Save $6.51 Save $6.51
$71.56
$71.56 - $71.56
$71.56
$65.05
$65.05 - $65.05
$65.05

by Parker Hannifin
Banjo Fittings:3118 - banjo fractional inch tube to 10-32 UNF

Package Quantity: 10 Units

Specifications for Variant SKU: 3118 53 20 Parker | 10 |
Series: 3118 Series
Shape (Orientation): Banjo
Material(s): Nylon, Nickel-Plated Brass
Seal Material(s): Buna-N/Nitrile Rubber
Special Properties: Silicone Free
Product Features:
  • Compact design with minimum space between fittings
  • Banjo bolt designed for maximum flow
  • Easy access, even when fittings are close together
  • Easy assembly and automatic sealing:
      • • with pre-applied thread sealant on tapered threads
      • with an integral O-ring seal on parallel threads
  • Safe operation: orientation of tube is ensured
  • 100% leak-tested in production
  • Date coding to guarantee quality and traceability
  • Silicone-Free
      • Modular
  • Effortless stacking of banjo bodies to allow construction of 2 to 6 outlets
  • Orientable 360° for perfect alignment
  • Modular: tube diameters may be different
Markets:
  • Automotive
  • Textile
  • Packaging
  • Pneumatic
  • Industrial
Applications:
  • Robotics
  • Automotive Process
  • Pneumatics
  • Semi-Conductors
  • Textile
  • Packaging
Compatible Fluids
  • Compressed air
    Other fluids: please consult us
Working Pressure
  • 290 psi (20 bar) maximum
Vacuum Capability
  • 28" Hg
Working Pressure
  • -4° to 176° F (-20° to 80° C
Part Number ØD UNF (C) E G H L1 L2 Oz
3118 53 20 1/8" 10-32 .16" .33" .79" .20" .65" .23 Oz
3118 04 20 5/32" 10-32 .16" .33" .79" .20" .65" .23 Oz
3118 56 20 1/4" 10-32 .16" .43" .79" .20" .73" .40 Oz
