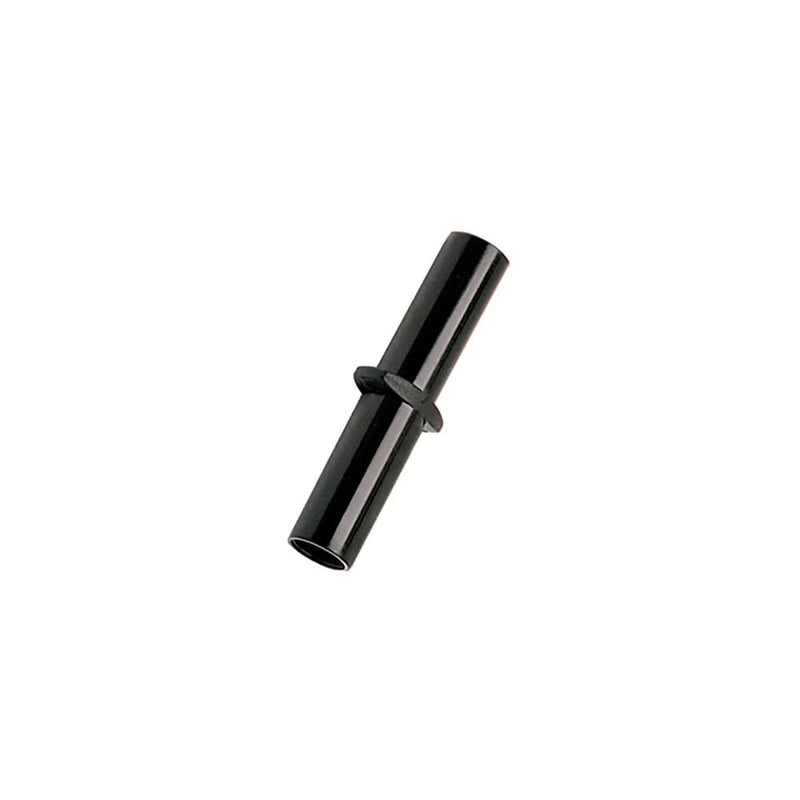

3120 12 00 by Parker | Legris Plug-In Fittings | 12 mm Stem x 12 mm Stem | 60 mm Length | Straight | Polymer | Pack of 10

Save $3.18

$35.01

$35.01 - $35.01

$35.01

$31.83

$31.83 - $31.83

$31.83

by Parker Hannifin
LF 3000® Push-In Fittings / Plug-In Fittings and Accessories:3120 Stem Connector

Package Quantity: 10 Units

Quantity

Specifications for Variant SKU: 3120 12 00 Parker \| 10 \|
Brand:	LF 3000®
Series:	3120 Series
Shape (Orientation):	Straight
Material(s):	Polymer
Special Properties:	Silicone Free, Lightweight

Technical Characteristics:	Compatible Fluids: Compressed air Working Pressure: Vacuum to 20 bar Working Temperature: -20°C to +80°C
Advantages:	Robust, lightweight, compact to build your pneumatic circuits Full flow connections to optimize flow rates Use in vacuum as well as in compressed air Customized products upon request. Please, contact us
Regulations:	ISO 14743 PED RoHS REACH
Component Materials:	Gripping Ring: Stainless Steel Body: Technical Polymer BSPP Thread Sealing: NBR O-Ring BSPT/NPT: Pre-coating Adaptor: Nickel-Plated Brass Sealing Ring: NBR Release Button Technical Polymer


Part Number	ØD	L	L1	Kg
3120 04 00	4 mm	34.5 mm	12 mm	.001 Kg
3120 06 00	6 mm	38.5 mm	14 mm	.001 Kg
3120 08 00	8 mm	41 mm	18.5 mm	.001 Kg
3120 10 00	10 mm	51.5 mm	20.5 mm	.002 Kg
3120 12 00	12 mm	60 mm	24.5 mm	.004 Kg
3120 14 00	14 mm	69.5 mm	25.5 mm	.007 Kg

This model exists in nickel-plated brass; please use suffix 85. Example: 3120 06 00 85 Only compatible with Parker Legris fittings. Drawing available upon request.
