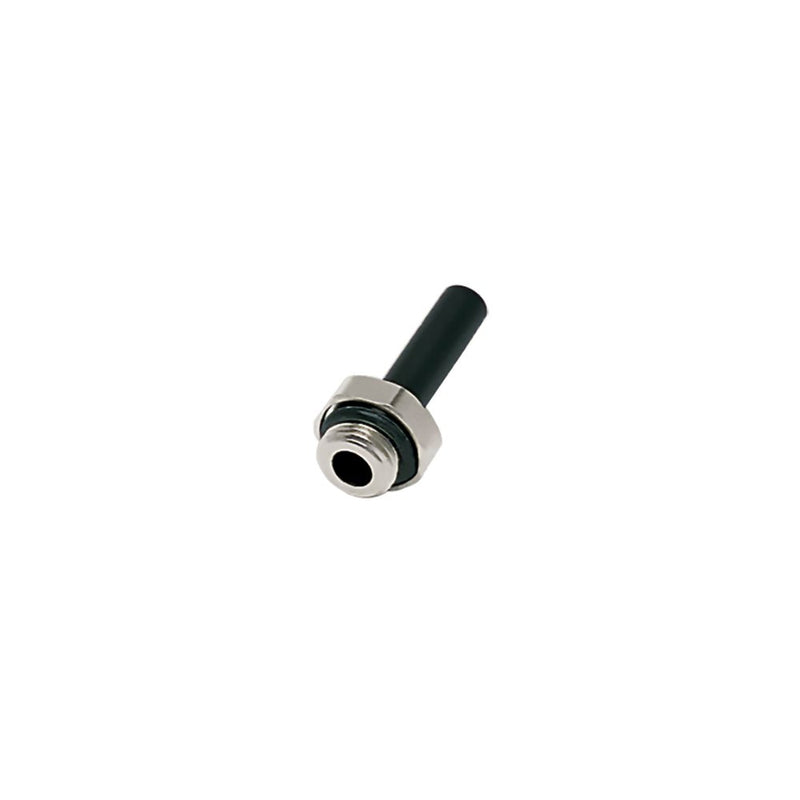

3131 04 20 by Parker | Legris Stud Fitting | 5/32" Tube Stem x 10-32 Male UNF Thread | 8 mm Hex | 1.24" Length | Straight | Nylon | Pack of 10

Save $12.82

$141.01

$141.01 - $141.01

$141.01

$128.19

$128.19 - $128.19

$128.19

by Parker Hannifin
LF 3000® Push-In Fittings / Stud Fittings:3131 Stud Standpipe, Male BSPP and Metric Thread

Package Quantity: 10 Units

Quantity

Specifications for Variant SKU: 3131 04 20 Parker \| 10 \|
Brand:	LF 3000®
Series:	3131 Series
Shape (Orientation):	Straight
Material(s):	Nickel-Plated Brass, Stainless Steel, Polymer
Seal Material(s):	Buna-N/Nitrile Rubber
Special Properties:	Silicone Free, Lightweight

Technical Characteristics:	Compatible Fluids: Compressed air Working Pressure: Vacuum to 20 bar Working Temperature: -20°C to +80°C
Advantages:	Robust, lightweight, compact to build your pneumatic circuits Full flow connections to optimize flow rates Use in vacuum as well as in compressed air Customized products upon request. Please, contact us
Regulations:	ISO 14743 PED RoHS REACH
Component Materials:	Gripping Ring: Stainless Steel Body: Technical Polymer BSPP Thread Sealing: NBR O-Ring BSPT/NPT: Pre-coating Adaptor: Nickel-Plated Brass Sealing Ring: NBR Release Button Technical Polymer


Part Number	ØD	C	E	F	H	H1	Kg
3131 04 20	5/32"	10-32	.14"	8 mm	1.24"	.14"	.002 Kg
3131 04 19	4 mm	M5x0.8	3.5 mm	8 mm	31 mm	16 mm	.002 Kg
3131 04 10	4 mm	1/8"	5 mm	13 mm	30 mm	13.5 mm	.005 Kg
3131 04 13	4 mm	1/4"	5.5 mm	16 mm	31 mm	13.5 mm	.010 Kg
3131 06 10	6 mm	1/8"	5 mm	13 mm	32 mm	13.5 mm	.005 Kg
3131 06 13	6 mm	1/4"	5.5 mm	16 mm	33 mm	13.5 mm	.010 Kg
3131 08 10	8 mm	1/8"	5 mm	13 mm	35.5 mm	12.5 mm	.008 Kg
3131 08 13	8 mm	1/4"	5.5 mm	16 mm	34.5 mm	10.5 mm	.010 Kg
3131 08 17	8 mm	3/8"	5.5 mm	20 mm	34.5 mm	10.5 mm	.015 Kg
3131 10 13	10 mm	1/4"	5.5 mm	16 mm	43.5 mm	17.5 mm	.012 Kg
3131 10 17	10 mm	3/8"	5.5 mm	20 mm	41.5 mm	15.5 mm	.015 Kg
3131 10 21	10 mm	1/2"	7 mm	24 mm	41.5 mm	15.5 mm	.024 Kg
3131 12 17	12 mm	3/8"	5.5 mm	20 mm	42 mm	12 mm	.015 Kg
3131 12 21	12 mm	1/2"	7 mm	24 mm	43.5 mm	12 mm	.024 Kg
3131 14 17	14 mm	3/8"	5.5 mm	20 mm	46.5 mm	14 mm	.016 Kg
3131 14 21	14 mm	1/2"	7 mm	24 mm	48 mm	13.5 mm	.025 Kg
