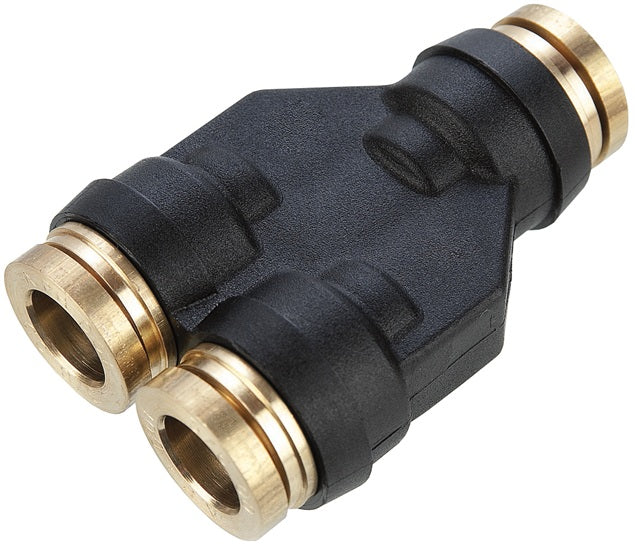

31405600DOT Legris by Dixon Valve | D.O.T. Push-In Pneumatic Fitting | Y Union | 1/4" Tube OD | Composite/Brass

Name: 31405600DOT Legris by Dixon Valve | D.O.T. Push-In Pneumatic Fitting | Y Union | 1/4" Tube OD | Composite/Brass
Brand: Dixon
SKU: 31405600DOT Dixon
Price: 8.48 USD
Availability: InStock

Save $0.88

$9.36

$9.36 - $9.36

$9.36

$8.48

$8.48 - $8.48

$8.48

Dixon Valve & Coupling
Legris D.O.T. Push-In Fitting | Push-In Y Union | Tube End x Tube End x Tube End

Designed for use on all pneumatic circuits other than air brake assemblies between the frame and axle or between towed and towing vehicle.

Quantity

Specifications for Variant SKU: 31405600DOT Dixon
Shape (Orientation):	Y
Ends Configuration:	1/4in Push-to-Connect, 1/4in Push-to-Connect, Some Ends Match
Material(s):	Plastic, Brass
Seal Material(s):	Buna-N/Nitrile Rubber

Features:
Suitable fluids: compressed air only. Full 360° rotation, but lock into place preventing accidental movement of fitting. 3/8" and below can be rotated with your hands; 1/2" and above require a wrench for rotating.
Materials:
Composite body (Unless noted below) Brass collet Stainless steel tube support Nitrile Rubber seal
Specifications:
Maximum operating pressure: 250 PSI at ambient temperature 70°F (21°C) Temperature range: -40°F to 200°F (-40°C to 93°C)
Approvals:
Meets D.O.T. FMVSS571.106, SAE J1131, and SAE J2494-3. 3/8" and below fittings can be rotated with your hands.

Part Number	Tube O.D.
31405600DOT	1/4"
31406000DOT	3/8"

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
