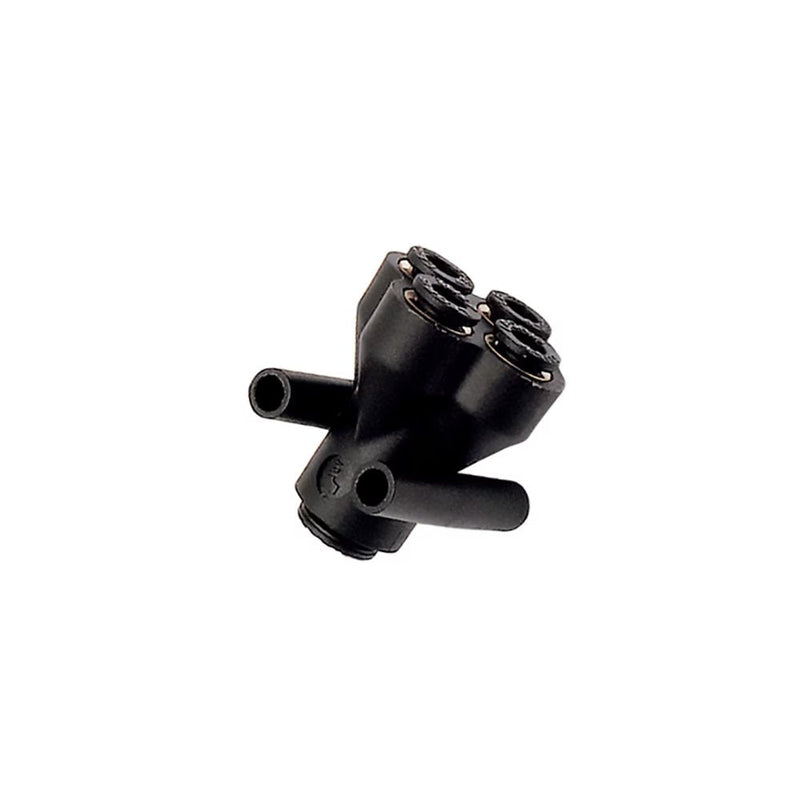

3144 04 56 by Parker | Legris Multiple Fittings | 5/32" Push-to-Connect x 1/4" Push-to-Connect | 1.18" Length | Double Y | Nylon

3144 04 56 by Parker | Legris Multiple Fittings | 5/32" Push-to-Connect x 1/4" Push-to-Connect | 1.18" Length | Double Y | Nylon | Pack of 10

Save $13.13 Save $13.13
$144.47
$144.47 - $144.47
$144.47
$131.34
$131.34 - $131.34
$131.34

by Parker Hannifin
LF 3000® Push-In Fittings / Multiple Fittings:Equal and Unequal Multiple Y Piece

Package Quantity: 10 Units

Specifications for Variant SKU: 3144 04 56 Parker | 10 |
Brand: LF 3000®
Series: 3144 Series
Shape (Orientation): Double Y
Material(s): Stainless Steel, Polymer
Seal Material(s): Buna-N/Nitrile Rubber
Special Properties: Silicone Free, Lightweight
Technical Characteristics:
  • Compatible Fluids: Compressed air
  • Working Pressure: Vacuum to 20 bar
  • Working Temperature: -20°C to +80°C
Advantages:
  • Robust, lightweight, compact to build your pneumatic circuits
  • Full flow connections to optimize flow rates
  • Use in vacuum as well as in compressed air
  • Customized products upon request. Please, contact us
Regulations:
  • ISO 14743
  • PED
  • RoHS
  • REACH
Component Materials:
  • Gripping Ring: Stainless Steel
  • Body: Technical Polymer
  • BSPP Thread Sealing: NBR O-Ring
  • BSPT/NPT: Pre-coating
  • Adaptor: Nickel-Plated Brass
  • Sealing Ring: NBR
  • Release Button Technical Polymer
Part Number ØD ØD1 K K1 L N N1 ØT Kg
3144 04 04 4 mm 4 mm 25.5 mm 21 mm 30.5 mm 10 mm 8.5 mm 3.7 mm .015 Kg
3144 04 06 4 mm 6 mm 25.5 mm 21 mm 30.5 mm 10 mm 8.5 mm 3.7 mm .013 Kg
3144 04 56 5/32" 1/4" 1.00" .83" 1.20" .39" .34" .15" .011 Kg
3144 06 06 6 mm 6 mm 31.5 mm 26.5 mm 37.5 mm 12 mm 10 mm 3.7 mm .032 Kg
3144 06 08 6 mm 8 mm 31.5 mm 26.5 mm 38 mm 12 mm 10 mm 3.7 mm .026 Kg
